MPO MTP 40G QSFP+ TO 4X10G SFP+ Fiber Optic Harness

Large Image : MPO MTP 40G QSFP+ TO 4X10G SFP+ Fiber Optic Harness

Product Details:

Place of Origin:	Shenzhen
Certification:	ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:
Packaging Details:	1 PCS /PE bag
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50K

Contact Now

Detailed Product Description

Model Number::	MPO-LC Cable	Multi-Mode Fiber::	OM1,OM2,OM3,OM4,OM5
No. Of Fiber::	8,12,24,48	Length::	Customized
Operating Temp Range::	-40℃ ~ +80℃	Test Wavelength::	1310nm 1550nm
High Light:	MTP Fiber Optic Harness, 40G Fiber Optic Harness, 40G SFP+ Fiber Optic Cord

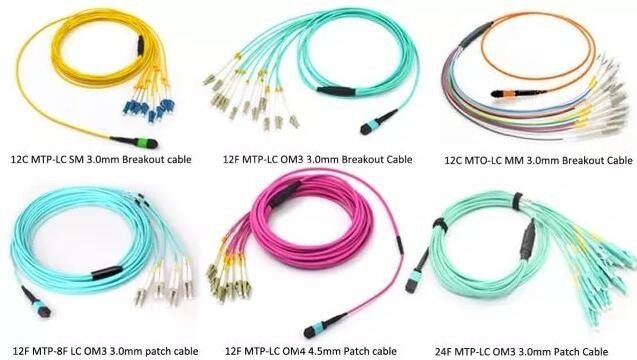

MPO/MTP harnesses cables 40G QSFP+ (MPO/MTP) TO 4X10G SFP+ (8XLC) patch cord

MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.

The Harness MPO(MTP) cables are offered for various applications for all networking and device needs like 100 Gig modules including CFP, CFP2 and CFP4 series. All of our MPO(MTP) harness cables meet IEC 1754-7 and TIA/EIA 604-5 standards. Actually, it belongs to a custom product, please kindly email your requirements to us!

Features:

With 12-fiber and 24-fiber MPO/MTO connector standard
Available in OS1/2, OM2, OM3 and OM4
Available in FC,LC, SC, ST, MU, and MTP
Interface polished type has PC, UPC and APC
Support use in attaching directly to 40/100G transceivers
100% factory tested, with test results included for each assembly
Polarity options are TIA style A, B, or C (Method B is standard)
For transition from trunk backbone assemblies to fiber rack system
Discrete connectors are heat-cured and use ceramic ferrules and sleeves
Fan-out fibers from MPO/MTP connectors into individual simplex or duplex
Used in conjunction with frame (Zero-U) or Flush Mount 1RU panels, and direct connect into SAN equipment
Customized for length, staggering, connector type, breakout style, fiber count, and labeling

MTP/MPO Specifications:

Type	Single Mode		Single Mode		Multi Mode
	(APC Polish)		(UPC Polish)		(PC Polish)
Fiber Count	8,12,24 etc.		8,12,24 etc.		8,12,24 etc.
Fiber Type	G652D,G657A1 etc.		G652D,G657A1 etc.		OM1,OM2,OM3 etc.
Maximum Insertion Loss	Elite	Standard	Elite	Standard	Elite	Standard
	Low Loss		Low Loss		Low Loss
	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.75dB	≤0.35 dB	≤0.60dB
Return Loss	≥60 dB		≥60 dB		NA
Durability	≥500 times		≥500 times		≥500 times
Operating Temperature	-40℃ ~ +80℃		-40℃ ~ +80℃		-40℃ ~ +80℃
Test Wavelength	1310nm		1310nm		1310nm

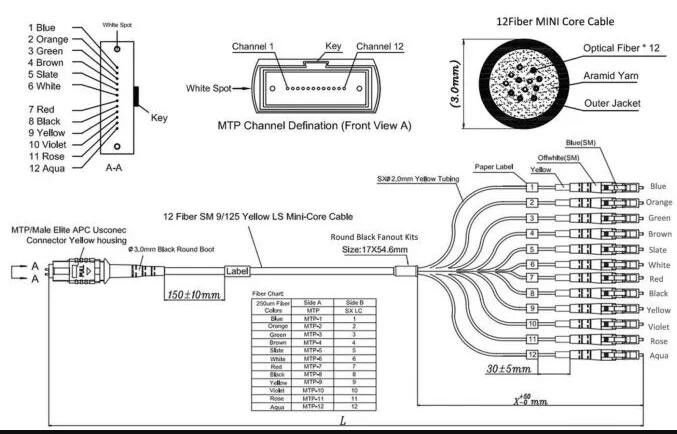

Below 12Core MTP/APC-LC Breakout 3.0mm Patch Cables spec as reference .MTP Connector is Male Elite APC Usconec Connector Yellow housing,Cable is 12 fiber Singlemode 3.0mm Mini Core cable,Round Fan-out Kits,Breakout 2.0mm.Inside fiber color from 1~12 is Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Rose ,Aqua.

Remark:

End Connector type available for LC SX, SC SX, LC DX, SC DX, LC Uni-boot, MU SX, FC, ST, MTRJ
The default diameter of main mini core cable is Φ3.0mm.
The diameter of branch cable could be choosen as 0.9mm,2.0mm.
We can also custom the pulling eyes, welcome to contact us if you need.

Cable Color

Hybrid Harnesses cables: OS1/2-yellow, OM1/2-orange, OM3/4-Aqua
40G/100G Harnesses cables: Aqua
MPO/MTP-LC Secure Keyed Harnesses cables: OS1/2-yellow, OM1/2-orange, OM3/4-Aqua
