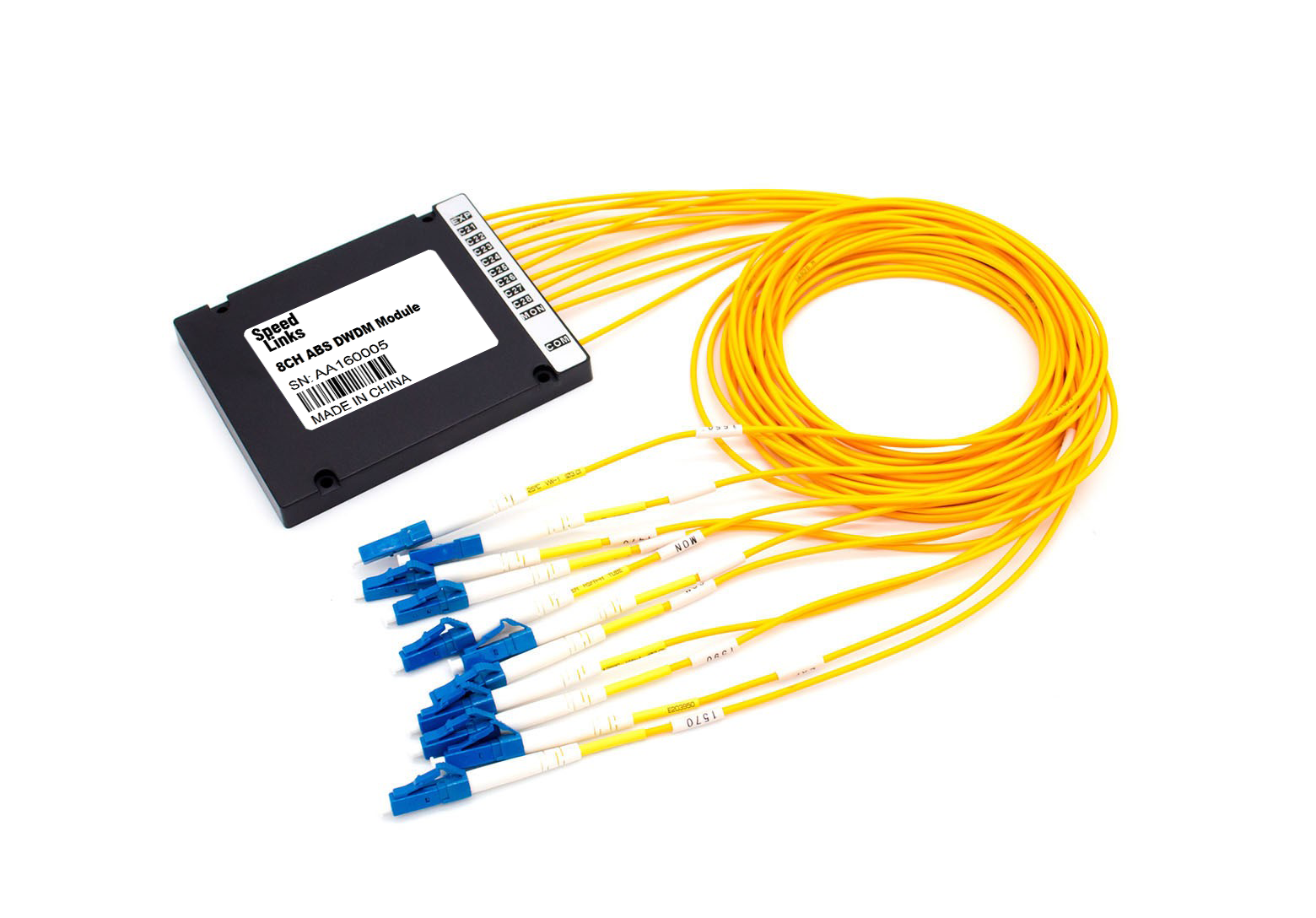

8 Channels C21-C28 DWDM MUX DEMUX Dual Fiber with Expansion Port LC/UPC ABS BOX

Product Details



Operating Wavelength 8 Channels C21-C28 Channel Spacing 100GHz
Passband ITU±0.11 Insertion Loss ≤ 2.4dB
Directivity ≥50dB Return Loss ≥45dB
Passband Ripple ≤ 0.5dB Fiber Type SMF-28e+
Adjacent Channel Isolation ≥30dB Non-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dB Polarization Mode Dispersion ≤0.2ps
Maximum Optical Power 300mW Dimensions (HxWxD) 10x80x120mm
Operating Temperature -20°C~+75°C Storage Temperature -40°C~+85°C









Quality Assurance

Excellent quality is the foundation of SPEED LINKS' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.


Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Rigorous Industrial Product Testing


Optical communication products belong to industrial products,which require high stability and reliability.SPEED LINKS adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.
