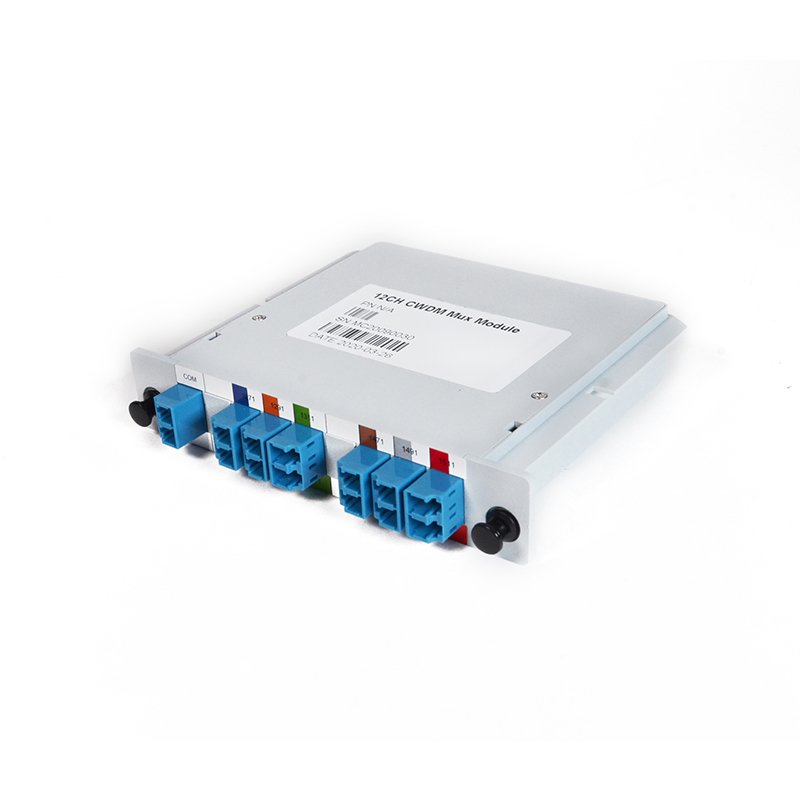

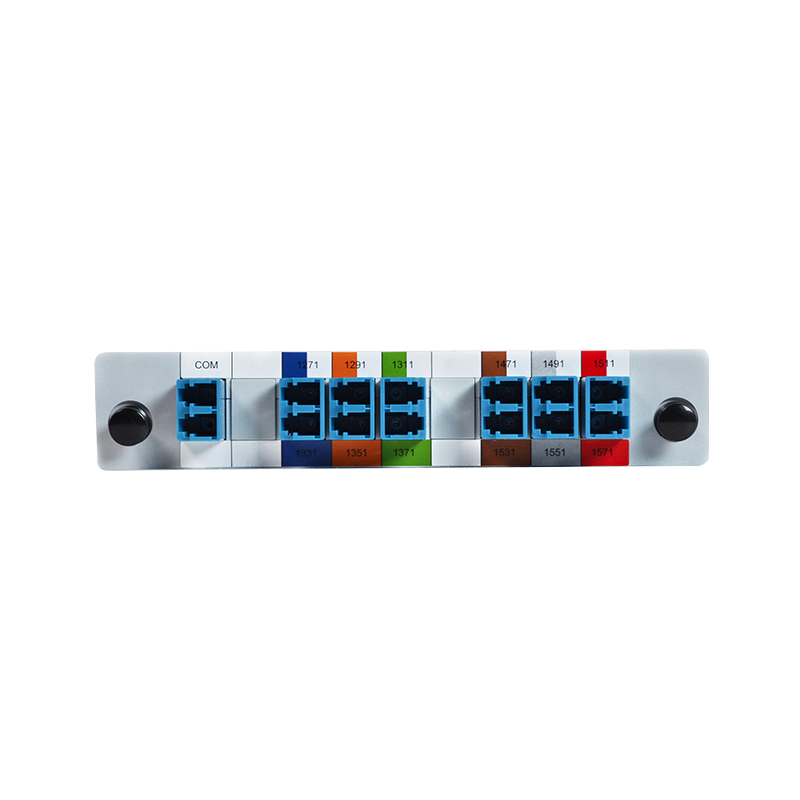

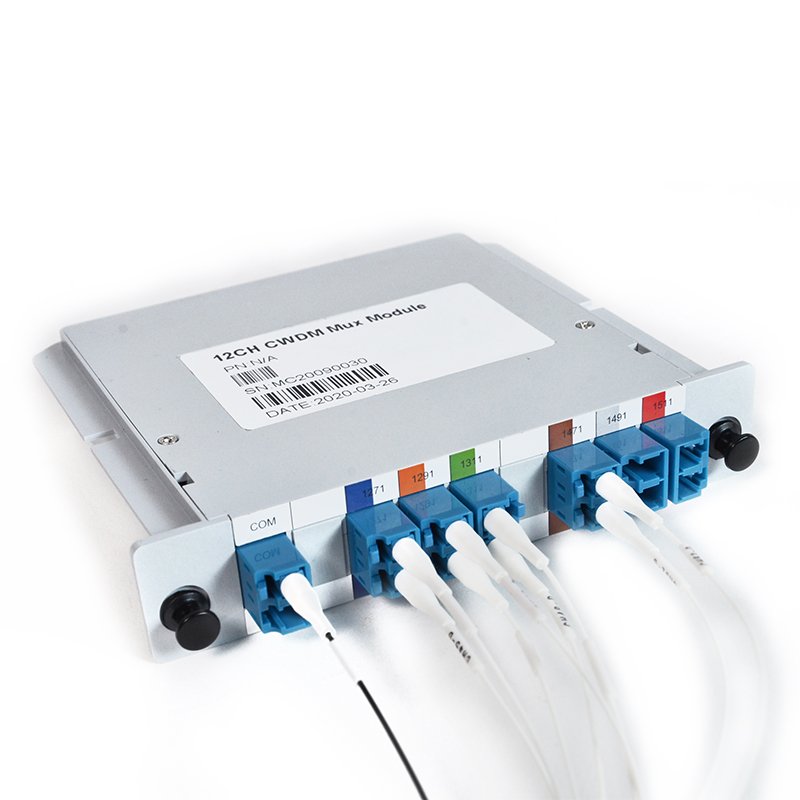

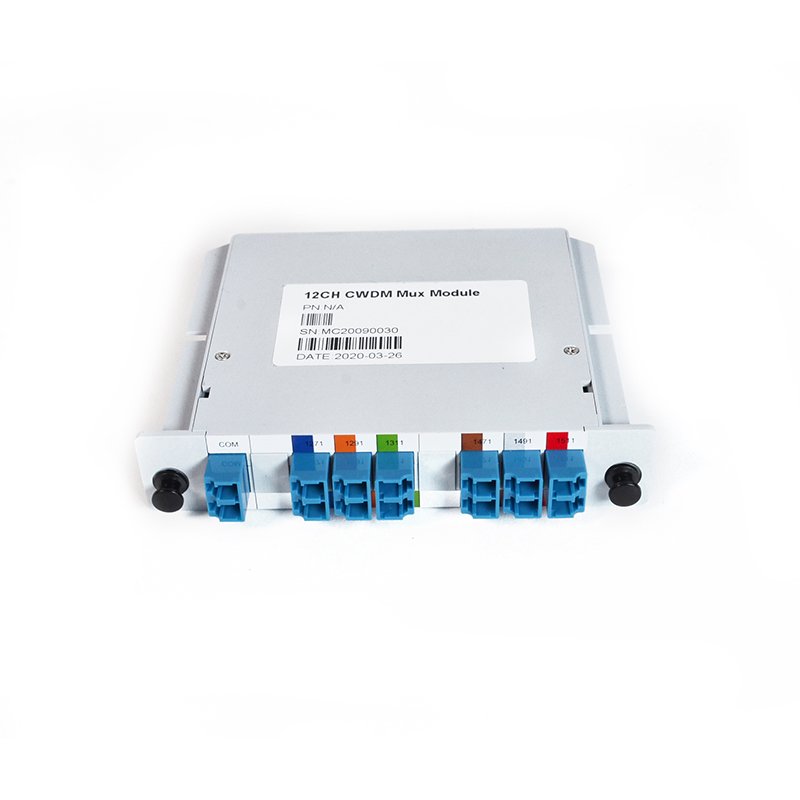

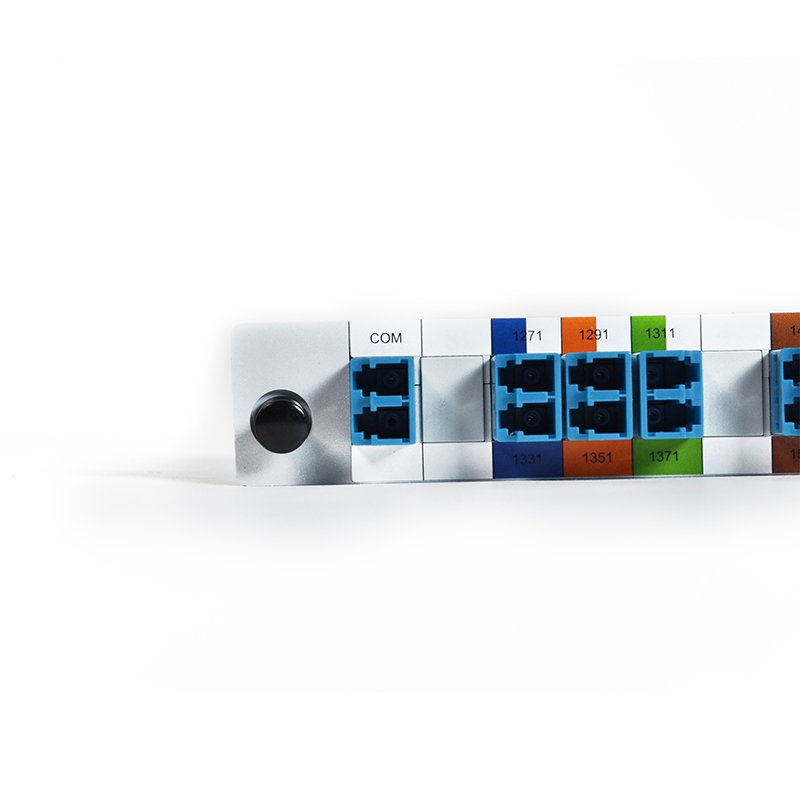

Passive CWDM Double Fiber Mux & Demux Module 8CH (1470-1610nm) LC/UPC PLUG-IN BOX

Passive CWDM Double Fiber Mux & Demux Module 8CH (1470-1610nm) LC/UPC PLUG-IN BOX

Large Image :  Passive CWDM Double Fiber Mux & Demux Module 8CH (1470-1610nm) LC/UPC PLUG-IN BOX

Product Details:

Place of Origin: Shenzhen
Certification: CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price:
Packaging Details: box
Delivery Time: 8-12days
Payment Terms:
Supply Ability: 2000piece/day
Detailed Product Description

8 Channels 1470 to 1610nm LC/UPC Dual Fiber CWDM MUX DEMUX PLUG-IN BOX

Product Details



Operating Wavelength 8 Channels 1470-1610nm Channel Space 20nm
Passband ITU±6.5nm Insertion Loss ≤2.4dB
Directivity ≥50dB Return Loss ≥45dB
Monitor Port None Fiber Type SMF-28e or Customer Specified
Adjacent Channel Isolation ≥30dB Non-adjacent Channel Isolation ≥40dB
Polarization Dependent Loss ≤0.2dB Polarization Mode Dispersion ≤0.1ps
Maximum Optical Power 300mW Dimensions (HxWxD) 29x129x130mm
Operating Temperature -20°C~+70°C Storage Temperature -40°C~+85°C


Quality Assurance

Excellent quality is the foundation of SPEED LINKS' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.


Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Rigorous Industrial Product Testing


Optical communication products belong to industrial products,which require high stability and reliability.SPEED LINKS adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.
