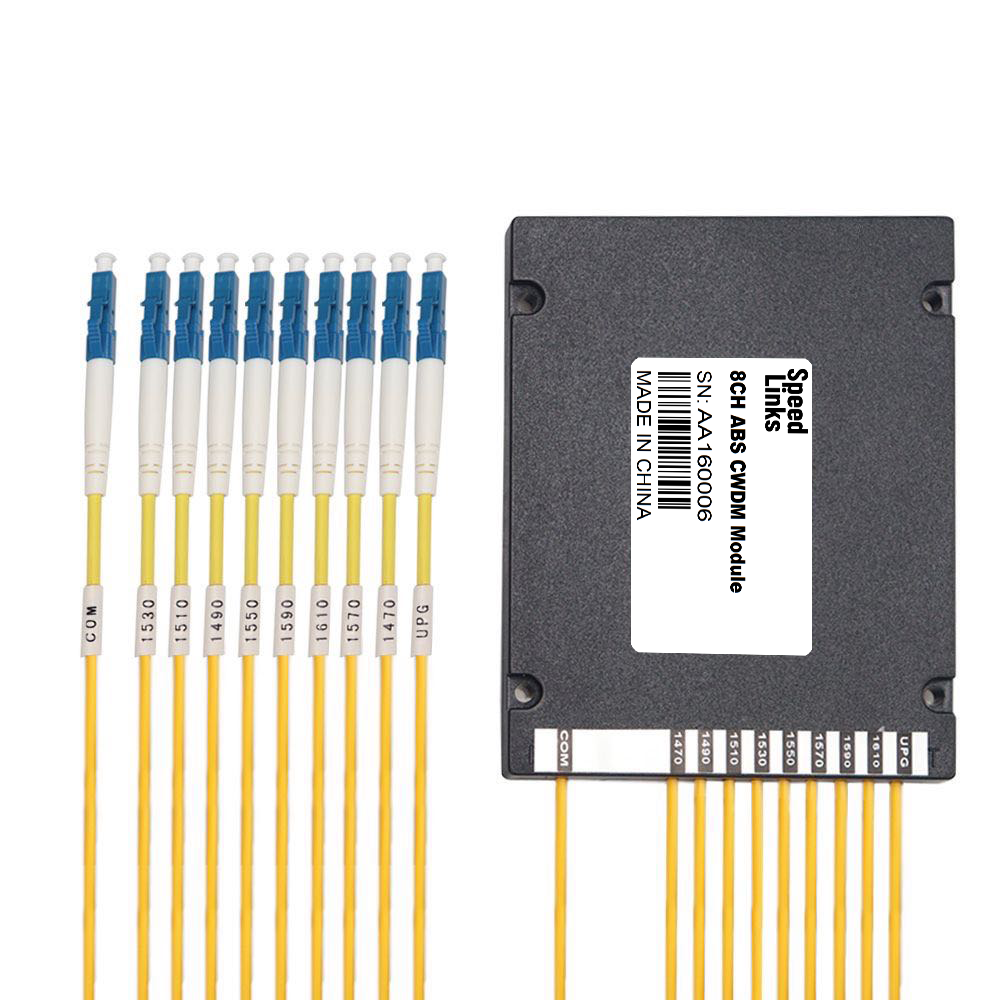

8 Channels 1470 to 1610nm LC/UPC Dual Fiber CWDM MUX DEMUX ABS BOX
Product Details
|
Operating Wavelength |
8 Channels |
Channel Space |
20nm |
|
Passband |
ITU±6.5nm |
Insertion Loss |
≤2.4dB |
|
Directivity |
≥50dB |
Return Loss |
≥45dB |
|
Monitor Port |
None |
Fiber Type |
SMF-28e |
|
Adjacent Channel Isolation |
≥30dB |
Non-adjacent Channel Isolation |
≥40dB |
|
Polarization Dependent Loss |
≤0.2dB |
Polarization Mode Dispersion |
≤0.1ps |
|
Maximum Optical Power |
300mW |
Dimensions (HxWxD) |
10x80x100mm |
|
Operating Temperature |
-20°C～+70°C |
Storage Temperature |
-40°C～+85°C |
