| Cores: | 8 | MPO Spec Items: | SM UPC/Flat Polish |
|---|---|---|---|
| Certification: | Telcordia GR-1435-CORE Compliant | Test Wavelength: | 1310nm, 850nm |
| Durability: | <0.3db typical="" change,="" 500=""> | ||
| High Light: | fiber optic patch cord, fiber optic cassette | ||
Yellow Breakout Mpo - Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard
MPO/MTP patch cord is a kind of high density cable assemblies which can be used in CO of FTTH. It save space and easy to maintain.
Features:
Low insertion loss, high return loss
MT based Multi-fiber Connector up to 12 fibers
High credibility and stability
Good in repeatability and exchangeability
Standard: Telcordia GR-1435-CORE compliant
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication networks.
Availability:

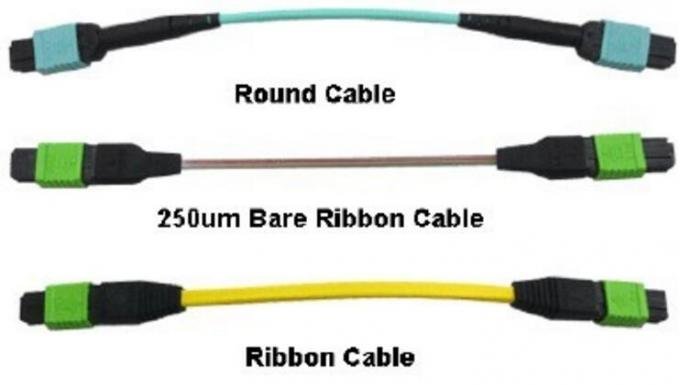

Ribbon and bundle cable available;
Patch cord, pigtail cable assemblies available.
MT-MT ribbon patch cord is available.
MPO Loopback available
Specification:
| MPO/MTP’s spec items. | SM(APC Polish); SM(UPC/Flat Polish) | MM(PC/Flat Polish) | ||
| Test Wavelength | 1310nm | 850nm | ||
| Insertion loss | Standard | Low loss | Standard | Low loss |
| ≤0.5dB | ≤0.35dB | ≤0.5dB | ≤0.35dB | |
| Return loss | UPC≥50dB;APC≥60dB | ≥30dB | ||
| Durability | <0.3dB typical change, 500 matings | |||
| Interchangeability | ≤0.2dB | |||
| Tensile strength | >70N | |||
Other connector’s Spec is the same as we mentioned in patch cord’s html.
