| Fiber Cable: | G652D,G657A1 | Cable Jacket: | PVC,LSZH,PE |
|---|---|---|---|
| Cable Color: | Yellow,Aqua | ||
| High Light: | fiber optic patch cord, patch cord optical fiber | ||
MPO / MTP 8/12/24 cores UPC/APC/OM3 Yellow/Aqua Fiber Optic Patch Cord
Product Description
MPO fiber optic patchcord is a multicore connection patchcord. It has a high density, integrated modular characteristics.
To achieve optical Alignment through a precise positioning of the guide pin and the guide hole .MPO fiber optic patch cords in the fiber optic communication link (transmission), mainly used in the optical path between the equipment and instruments connected, it can be flexible to achieve low loss high efficiency of the connection between all optical node.
Functional layout or Blocks Diagram
① TOLERANCES OF LENGTH (mm) , L ≤50000 + 50 / - 50
② Standard lengths for patch cords and pigtails are 1, 2, 3, 5 ,10 meters and customized.
③ Fiber＆CableType:(SM& MM) 250um Bare fiber,ribbon cable,Bundle fiber optic cable
Features
Benefits
MPO / MTP fiber patch cords in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired.purpose and requirements
Technical Specifications
| Item | Technical Parameters | |
| Connector Type | UPC | APC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss | Single-mode standard ferrule: 0.35dB (typical value); ≤ 0.70dB (max) | |
| Return Loss | ≥35dB(SM)；≥20dB(MM) | ≥50dB(SM) |

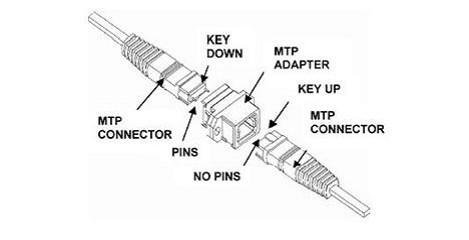

| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 4,8,12＆24 MT fiber | |
| The other end of the connector type | MPO-female* , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode= (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
