Product Details:
Payment & Shipping Terms:
|
| Model Number:: | Mpo Mtp Fiber Optic Pigtail | Multi-Mode Fiber:: | OM1,OM2,OM3,OM4,OM5 |
|---|---|---|---|
| No. Of Fiber:: | 8,12,24,48 | Length:: | Customized |
| Inserted Core Cover:: | PC,APC Type Fiber Pigtail | Application:: | FTTH FTTB FTTX Network |
| High Light: | MPO Fiber Trunk Cable, MTP Fiber Trunk Cable, plenum fiber optic trunk cable | ||
12F/24F 40G-100G OM3 OM4 Plenum MTP MPO Fiber trunk cable patch cordProduct Description
MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.
These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
MPO/MTP Trunk Cable
MPO/MTP Harnesses Cables
MPO/MTP Fan out 0.9mm Patch Cords
IP-Series MPO/MTP Assembly
High Density Patch Cords
MPO/MTP Loopback
MT Patch Cords
MPO/MTP Cassettes
MPO/MTP Fiber Optic Patch Panel
Product Specifications
| Connector A | MPO Female (pinless) | Connector B | MPO Female (pinless) |
| Fiber Mode | OM3 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 100 m at 850 nm | 10G Ethernet Distance | 300 m at 850 nm |
| Glass Fiber | Corning ClearCurve® | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
Features :
*Low insertion loss
*Low reture loss
*Varours Connector Types available
*Easy instalation
* Environmentally stable
Application:
*Fiber Optic telecommunications
*Lan(Local Area network)
*FTTH (Fiber to the home)
*CATV & CCTV
*High Speed transmission systems
*Fiber optic sensing

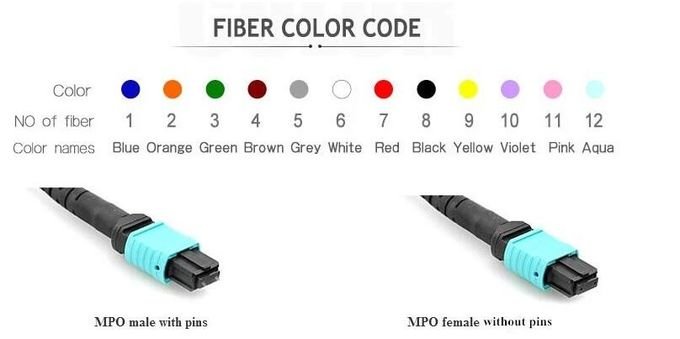

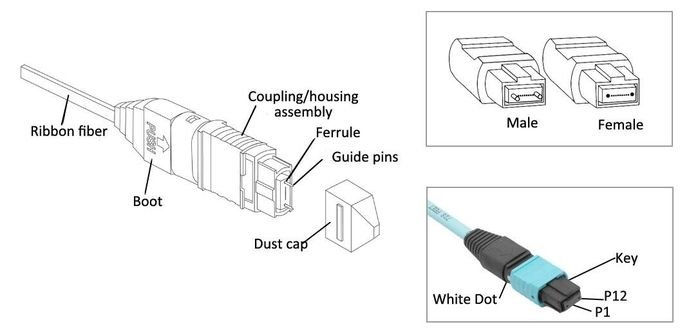

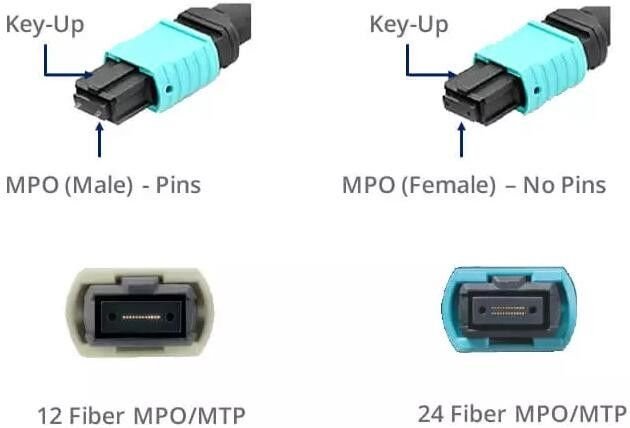

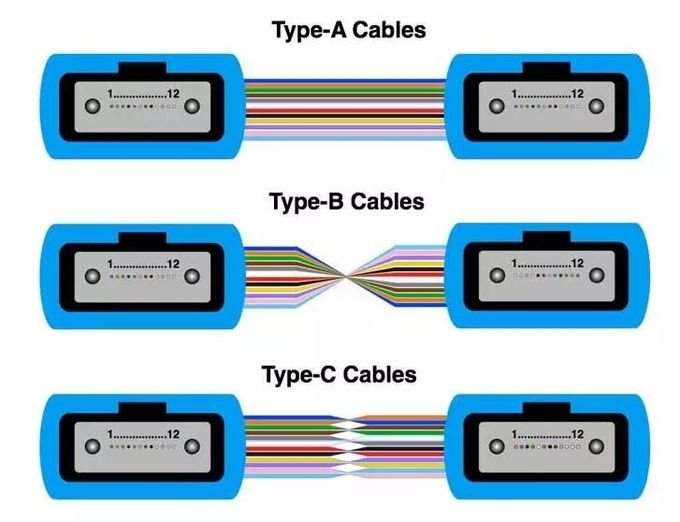

Detailed Images
