| Model Number:: | MTP-MTP OM4 12Cores 3m | Multi-Mode Fiber:: | OM1,OM2,OM3,OM4,OM5 |
|---|---|---|---|
| No. Of Fiber:: | 8,12,24,48 | Length:: | Customized |
| Connector Type:: | MTP Female | Application:: | Data Central |
| High Light: | MM Fiber Optic Trunk Cable, OM4 Fiber Optic Trunk Cable, MTP trunk fiber cable | ||

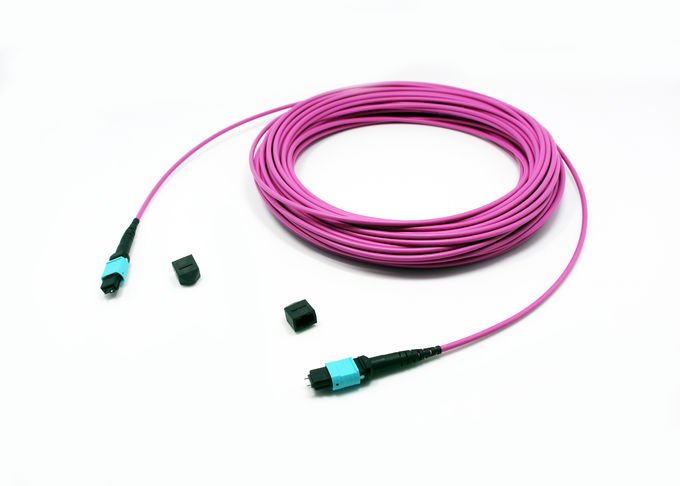

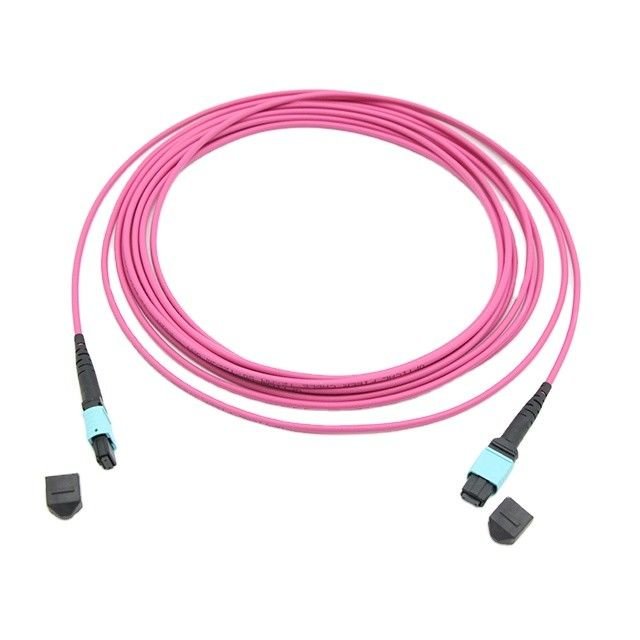

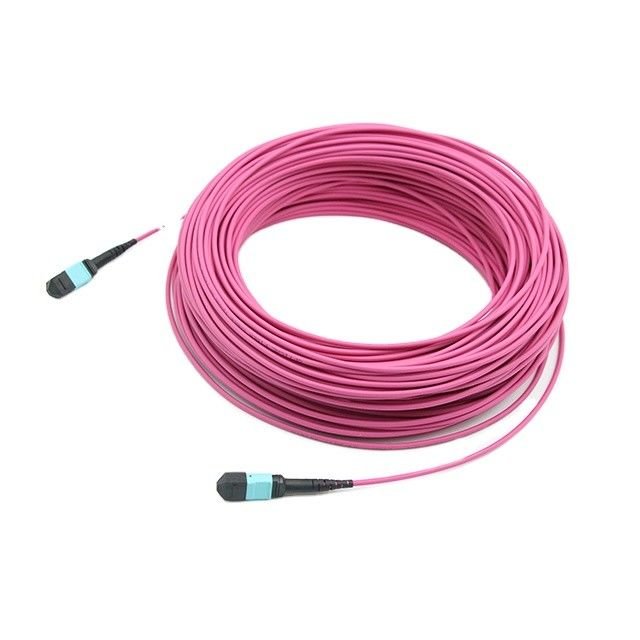

10G 40G 100G MTP Female 12 cores OM4 MM Trunk Patch Cord 100% 3D test MTP trunk cable for Data center cabling MPO trunk cables connect MPO modules together as a permanent link. The trunk cables are available with 24F,48F,60F,72F ,96F,144F.Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.Specification
Specification
| Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) |
|
Insertion loss (MPO) (IEC 61300-3-34) |
Standard MPO:≤0.75dB(max), ≤0.35dB(Typical) Elite MPO:≤0.35dB(max), ≤0.20dB(Typical) |
Standard MPO:≤0.6dB(max), ≤0.35(Typical) Elite MPO:≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) | ≥60dB(8degree polishing) | ≥25dB |
| Durability | <0.3dBtypical change, 200 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -40 to + 85°C | |
