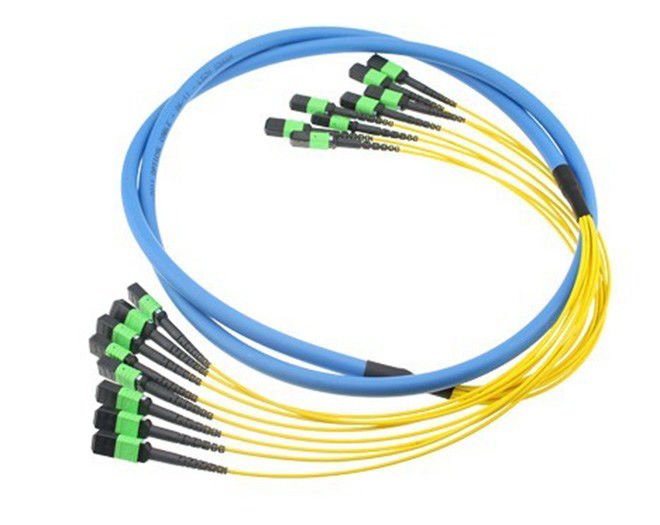

SM MTP MPO 40G 100G Fiber Optical Patch Cord 72 144 Core 30M

Large Image : SM MTP MPO 40G 100G Fiber Optical Patch Cord 72 144 Core 30M

Product Details:

Place of Origin:	Shenzhen
Certification:	ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:
Packaging Details:	1 PCS /PE bag
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50K

Contact Now

Detailed Product Description

Model Number::	30M MPO SM 72/144 Core, MPO/MTP SM 144 Cores	No. Of Fiber::	8,12,24,48
Insertion Loss::	≤0.35 DB	Return Loss::	≥50 DB
Application::	Data Center Cabling;Gigabit Ethernet
High Light:	100G Fiber Optical Patch Cord, 40G Fiber Optical Patch Cord, MPO SM Patch Cord

Data Center Cabling SM MTP MPO 40G/100G Fiber Optical Patch Cord 72 / 144 core Cable 30M
MPO / MTP multi-core optical bai cable jumper assembly products are composed of multi-core optical cables and corresponding 4/8/12/24/48 core high du density MPO / MTP. This product can provide zhi male or female MPO / MTP models, and can choose 4~48 core single-mode and multi-mode optical cables of various specifications.Features:1. Low insertion loss, high return loss.
2. MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies.
3. Economical solution for mass-termination of fiber.
4. Designed for low loss and standard loss SM and MM applications.
5. Ruggedized round cable, oval cable and bare ribbon options available.
6. Color coded housings available to differentiate fiber type, polish type and/or connector grade.
7. Good in repeatability and exchangeability. Application:◆Backbone installation
◆Data center cabling
◆Support 40G and 100G network
◆Telecommunication network
◆Industrial&Military
Connector Performance :

Model	SM	MM
Connector Fiber Count	8, 12, 24,72,144 core
Polish	PC, APC
Housing Color	Standard (green), Elite (Yellow)	Standard(Beige) Elite(Auqa)
Insertion Loss Standard type	less than 0.7dB	Less than 0.5dB
Insertion loss Elite type	Less than 0.35dB	Less than 0.3dB
Return Loss	PC >50dB, APC>60dB	>30dB
Durability (500 matings)	less than 0.2dB	less than 0.2dB
Test Eavelength	1310/1550nm	850/1300nm
