| Connector A: | MTP APC 12F / LC UPC | Cable Diameter:: | 3.0mm Or 3.6mm |
|---|---|---|---|
| Cable Color: | Yellow | Polarity: | A,B,C |
| High Light: | Mpo Fanout Patch Cord, MTP LC Fanout Patch Cord, Singlemode Fanout Patch Cord | ||
US CONNEC Singlemode mpo optical fiber Fanout patch cord MPO LC 12 core
Product Description
MTP-LC fanout patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.
Advantages
| Item | Technical Parameter | |
| Connector | MPO (Female) | LC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
SM:≤ 0.2dB; MM:≤ 0.2dB;
|
| Return Loss |
SM:≥60dB; MM:≥35dB; |
SM:≥60dB; MM:≥35dB; |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |

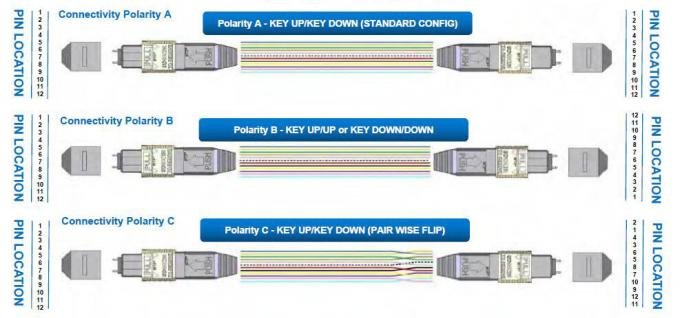

Polarity
