MPO To MPO OM3 OM4 72 Cores Mpo Patch Cord

Large Image : MPO To MPO OM3 OM4 72 Cores Mpo Patch Cord

Product Details:

Place of Origin:	Shenzhen
Certification:	ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:
Packaging Details:	1 PCS /PE bag
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50K

Contact Now

Detailed Product Description

Connector:	MPO 72F	Cable Diameter::	3.0mm Or 3.6mm
Cable Color:	Aqua / Purple	Polarity:	A,B,C
High Light:	72 Cores Mpo Patch Cord, OM4 MPO Patch Cord, OM3 Mpo Patch Cord

MPO to MPO OM3 OM4 72 cores mpo patch cord MPO Products aqua/purple cable corning fiber

Description:

MTP/MPO female/male OM3 fiber optic patch cord

The MPO / MTP AOC assemblies are installed in active optical cable, such as QSFP / QDR / CXP. Utilizing MPO / MTP Ferrule and FA to assemble the mini high speed connect patchcord.

Optical Fiber Cable From 2core to 24core

Fiber: can choose SM 9/125 or MM: 62.5/125 ,50/125, OM1,OM2,OM3,OM4

Low loss patch cord

Advantages

Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
Pretty high return loss:≥45dB
5-year Experience R&D Team
Customized Production and Service
40G/100G Data Center Solution

Application

Data center infrastructure
Storage Area Networks(SAN)
Gigabit Ethernet
Telecommunication Networks
Enterprise network cabling systerm

Technical Parameter

Item	Technical Parameters
Connector	MPO (F or M)	MPO(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value),≤0.35dB (typical value); MM:≤ 0.50dB (standard value),≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB

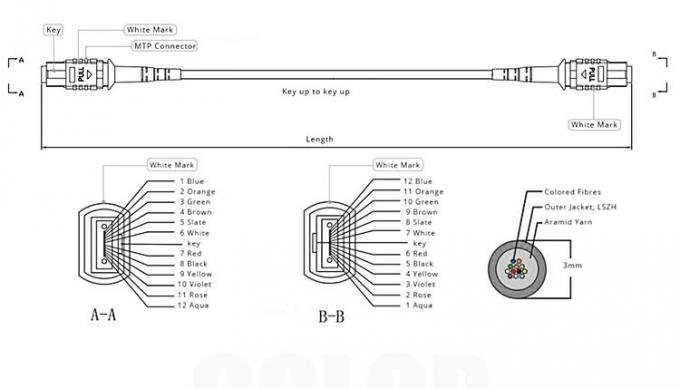

The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
The other end of the connector type	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable
