Product Details:
Payment & Shipping Terms:
|
| Connector: | Beige | Cable Diameter:: | 0.9 Mm |
|---|---|---|---|
| Cable Color: | 12 Cores | ||
| High Light: | Fanout Fiber Patch Cord, 0.9mm Fiber Patch Cord, MPO To LC Patch Cord | ||

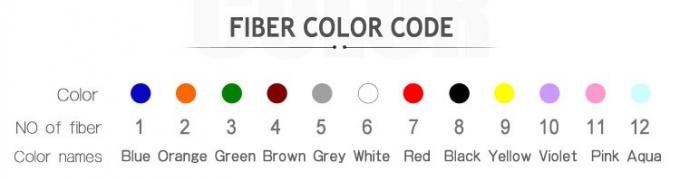

12 color 12 cores MPO to LC MM Beige fanout fiber patch cord 0.9mm cables
MPO Fiber Patch Cord are terminated with MPO connector on both end. All of OMC’s MPO Connectors are from Taiwan, Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
Features
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
Application
| Item | Technical Parameter | |
| Connector | MPO (Female) | LC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
SM:≤ 0.2dB; MM:≤ 0.2dB;
|
| Return Loss |
SM:≥60dB; MM:≥35dB; |
SM:≥60dB; MM:≥35dB; |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
