| Connector: | MPO 12F APC | Cable Diameter:: | 3.0mm Or 3.6mm Branch To 2.0mm |
|---|---|---|---|
| Cable Color: | Yellow | Polarity: | A,B,C |
| High Light: | Mpo Optical Patch Cord, Mtp To LC Patch Cord, APC Optical Patch Cord | ||

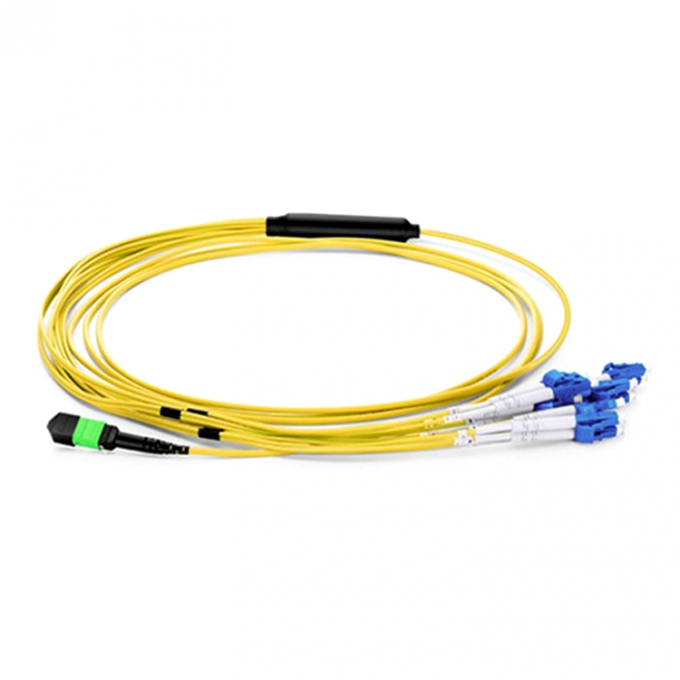

Green mpo mtp to LC fiber optic patch cord Fanout 8F cores 3.0mm to 2.0mm
Product Description
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Advantages
Applications:
Telecommunication networks
Test equipment
Optic fiber communication networks
Optical access network
Optical CATV
Optical LAN
Technical Parameter
| Item | Technical Parameter | |
| Connector | MPO (Female) | LC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
SM:≤ 0.2dB; MM:≤ 0.2dB;
|
| Return Loss |
SM:≥60dB; MM:≥35dB; |
SM:≥60dB; MM:≥35dB; |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |

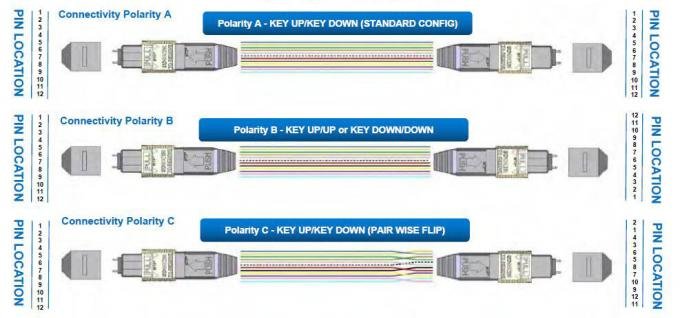

Polarity
