Product Details:
Payment & Shipping Terms:
|
| Connector: | MPO 24F UPC MM | Cable Diameter:: | 3.0mm Or 3.6mm Branch To 2.0mm |
|---|---|---|---|
| Cable Color: | Orange | Polarity: | A,B,C |
| High Light: | Mtp To LC Patch Cord, 24F Cores Fiber Patch Cord, Mpo Fiber Patch Cord | ||
Beige mpo mtp to LC fiber optic patch cord Fanout 24F cores 3.0mm to 2.0mm
Product Description

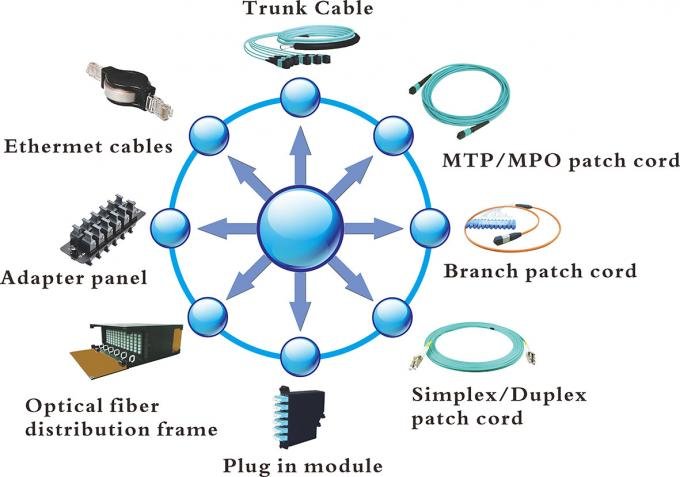

MPO series offers the solution from trunk cables to extended trunk cables, to hybrid trunk cables,to cassette modules, to MPO adapter panels, to direct patch panels, to patch panels in both MPO classification of G class(normal class) and L class(super low loss).
Application
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
8. Premise installations.
9. Wide Area Networks(WANs)
Advantages
| Item | Technical Parameter | |
| Connector | MPO (Female) | LC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
SM:≤ 0.2dB; MM:≤ 0.2dB;
|
| Return Loss |
SM:≥60dB; MM:≥35dB; |
SM:≥60dB; MM:≥35dB; |

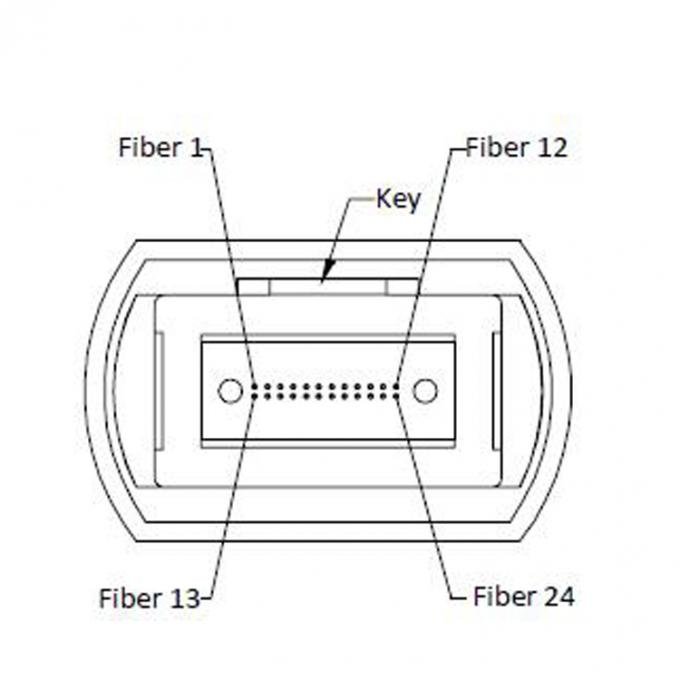

| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |
