Product Details:
Payment & Shipping Terms:
|
| Connector: | MPO 12F UPC MM | Cable Diameter:: | 3.0mm Or 3.6mm Branch To 2.0mm |
|---|---|---|---|
| Cable Color: | Orange | Polarity: | A,B,C |
| High Light: | 12F Core Mpo Patch Cord, Mtp To LC Patch Cord, 2.0mm Mpo Patch Cord | ||

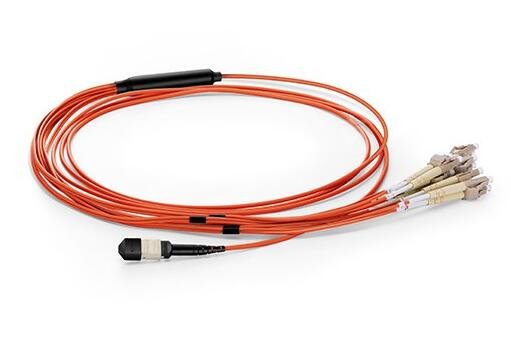

Beige mpo mtp to LC 12F cores fiber optic patch cord 3.0mm to 2.0mm
Product Description
MPO trunk multicore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged micro cables structure.
Advantages
1) Data communication network
2) Optical system access network
3) Storage area network fiber channel
4) High density architectures
Technical Parameter
| Item | Technical Parameter | |
| Connector | MPO (Female) | LC |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value), ≤0.35dB (typical value); MM:≤ 0.50dB (standard value), ≤0.35dB (typical value); |
SM:≤ 0.2dB; MM:≤ 0.2dB;
|
| Return Loss |
SM:≥60dB; MM:≥35dB; |
SM:≥60dB; MM:≥35dB; |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |

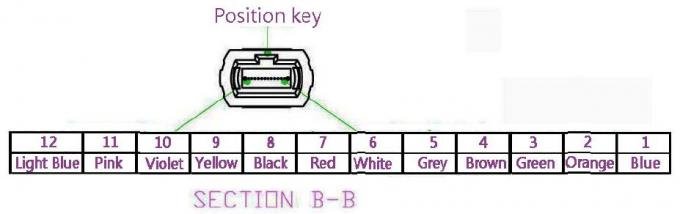

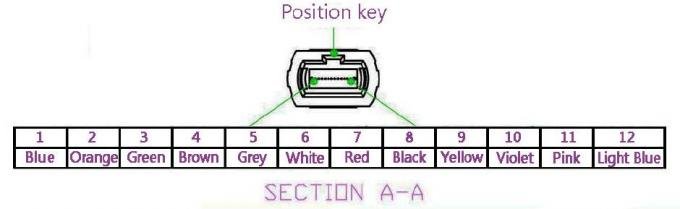

Polarity
