Product Details:
Payment & Shipping Terms:
|
| Connector: | MPO 72F | Cable Diameter:: | 3.0mm Or 3.6mm |
|---|---|---|---|
| Cable Color: | Aqua | Polarity: | A,B,C |
| High Light: | fiber optic patch cord, fiber optic cassette | ||
Product Description

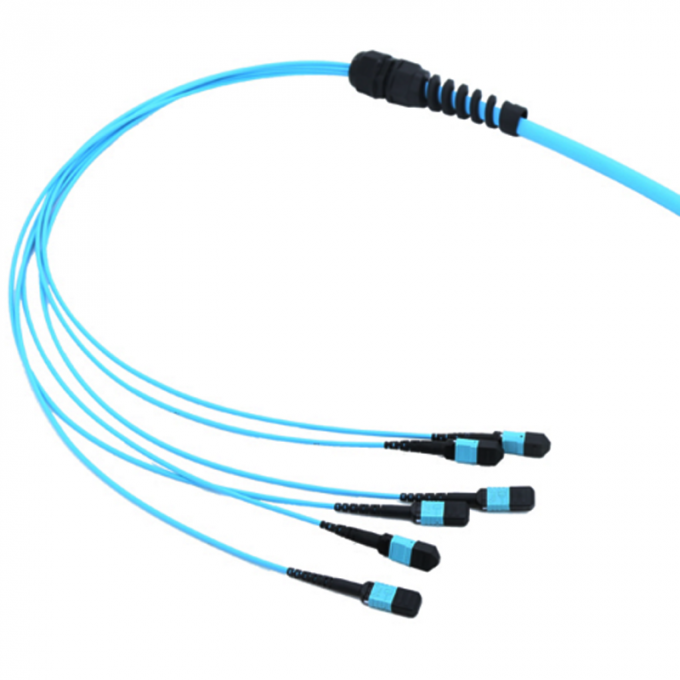

fiber optic mpo mtp patch cord are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.
Advantages
| Item | Technical Parameters | |
| Connector | MPO (F or M) | MPO(F or M) |
| Operation Temperature | -40°C ~ +80°C | |
| Storage Temperature | -40°C ~ +85°C | |
| Insertion Loss |
SM: ≤ 0.75dB (standard value),≤0.35dB (typical value); MM:≤ 0.50dB (standard value),≤0.35dB (typical value); |
|
| Return Loss | SM:≥60dB; MM:≥35dB | |
| The MPO end type | Male: with guide pin; Female: without guide pin | |
| Fiber count | 8,12&24 MT fiber | |
| The other end of the connector type | MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000 | |
| Fiber mode | Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4) | |
| Fiber cable type | 250um ribbon fiber,ribbon cable,Bundle fiber optic cable | |

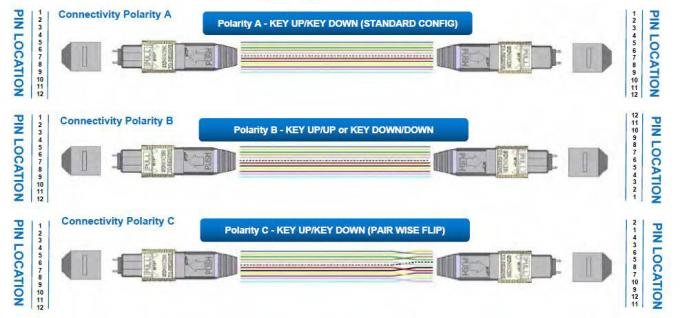

Polarity
Tag:fiber optic cassette,patch cord optical fiber,fiber optic patch cord
