SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A

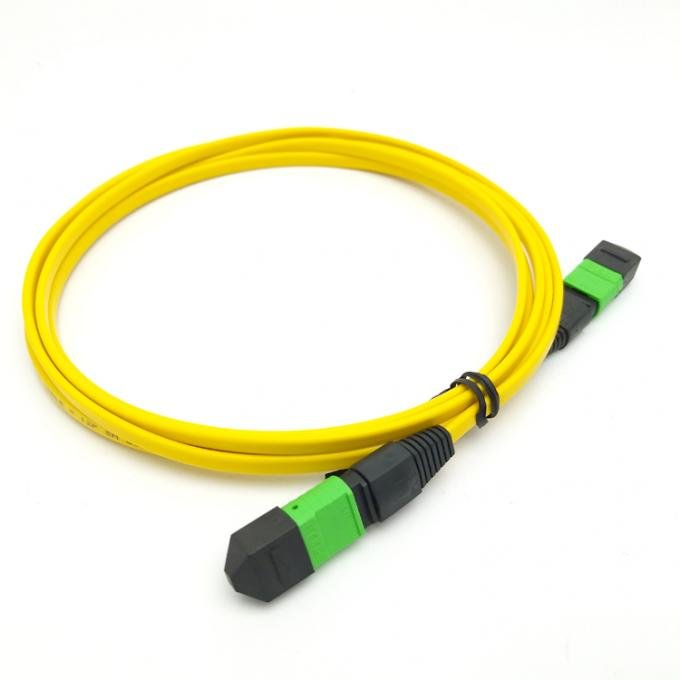

Large Image : SENKO 12 core MPO APC Singlemode OS2 mtp trunk cable Polarity A

Product Details:

Place of Origin:	Shenzhen
Certification:	ISO9001:2015

Payment & Shipping Terms:

Minimum Order Quantity:	5 piece
Price:
Packaging Details:	1 PCS /PE bag
Delivery Time:	3-5 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50K

Contact Now

Detailed Product Description

Connector:	MPO 12F	Cable Diameter::	3.0mm Or 3.6mm

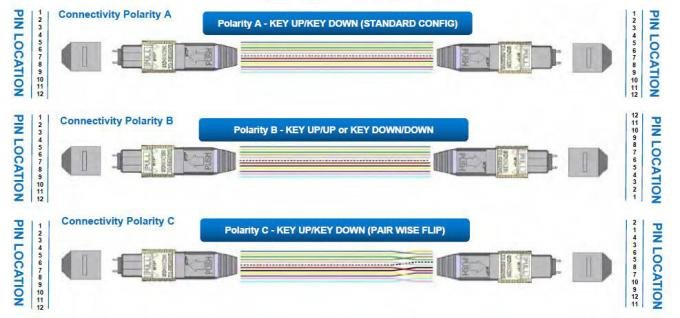

Cable Color:	Yellow	Polarity:	A
High Light:	fiber optic patch cord, patch cord optical fiber

Product Description

Singlemode MPO/MTP fiber patch cords are mainly used in high-density data centers, fiber to the building (FTTB) ,optical splitter / 40G/100G SFP / SFP + optical transceiver device to flexible connection between different modules. equipment and systems . so that the optical signal can transmit the desired channel, to achieve and complete a predetermined or desired purpose and requirements.

Advantages

Imported production and test equipments:EXFO IL&RL Tester/ Domaille Grinding Machine/ SENKO 3D Interferometer
Pretty high return loss:≥45dB
5-year Experience R&D Team
Customized Production and Service
40G/100G Data Center Solution

Application

Data center infrastructure
Storage area network
Emerging 40 & 100Gps Protocols
Parallel optics
Enterprise network cabling systerm

Technical Parameter

Item	Technical Parameters
Connector	MPO (F or M)	MPO(F or M)
Operation Temperature	-40°C ~ +80°C
Storage Temperature	-40°C ~ +85°C
Insertion Loss	SM: ≤ 0.75dB (standard value),≤0.35dB (typical value); MM:≤ 0.50dB (standard value),≤0.35dB (typical value);
Return Loss	SM:≥60dB; MM:≥35dB
The MPO end type	Male: with guide pin; Female: without guide pin
Fiber count	8,12&24 MT fiber
The other end of the connector type	MPO-female , MPO-male , FC , SC , ST , MU , LC , E2000
Fiber mode	Single-mode(G652,G655,G657), multi-mode (50, 62.5, OM2, OM3, OM4)
Fiber cable type	250um ribbon fiber,ribbon cable,Bundle fiber optic cable
