| Cable Color: | Aqua Or As Your Request | OEM & ODM: | Available |
|---|---|---|---|
| Fiber Counts: | 8/12/24. | Fiber Type: | OM1 OM2 OM3 OM4 OS2 G.65 |
| Connectors:: | MPO/MTP To LC/SC/MU/ST/MT | Polish:: | MM Flat, SM Angled, SM Elite(MTP), SM Low Loss(MPO) |
| High Light: | fiber optic patch cord, fiber optic cassette | ||

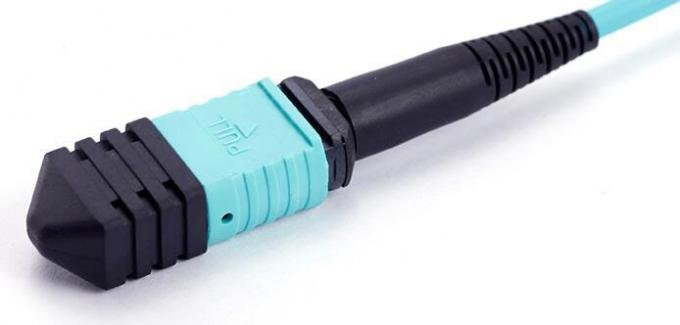

MPO/MTP Harness Cable OM3 50/125 Pre-terminated MTP/MPO to LC Fiber optic Jumpers
Product Description
SPEED LINKS provides the MTP /MPO fiber cable assembly, with the based on single ferrule MT technology, can provides up to single ferrule with 24 fiber cores connections. For reducing the physical space requirement. MTP /MPO solution can be various connector kits, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating.
SPEED LINKS patchcords are assembled with high-grade connectors, the ferrules are made of excellent quality zirconia. Apart from simplex patchcords, duplex patchcords are also available. All patchcords provided by SPEED LINKS are guaranteed to meet our specifications. For special requests on test reports or other specification, please contact us.
Features
• Data center systems cabling
• Pre-terminated MTP®/MPO to SC, LC, MU, ST, MT-RJ connectors
• Suitable for MTP®/MPO cassettes and patch panels
• Available in OM1, OM2, OM3, OM4 and OS2 fiber types
• RoHS compliant – Riser, Plenum, and LSZH rated cables available
• 100% factory tested
• Custom configurations available upon request
Specification
| Item (The other side) | Singlemode | Multimode | ||
| Connector Type | SC, FC, ST, LC, MU, MT-RJ | |||
| Insertion Loss | Standard | ≤0.12dB Typical, 0.3dB Max. | Standard | ≤0.15dB Typical, 0.3dB Max. |
| Return Loss | Standard | ≥50dB (PC), ≥60dB (APC) | Standard | ≥30dB |
| Durability | ≤0.1dB typical change, 500 matings | |||
| Operating Temperature | -40ºC to +75ºC | -40ºC to +75ºC | ||
