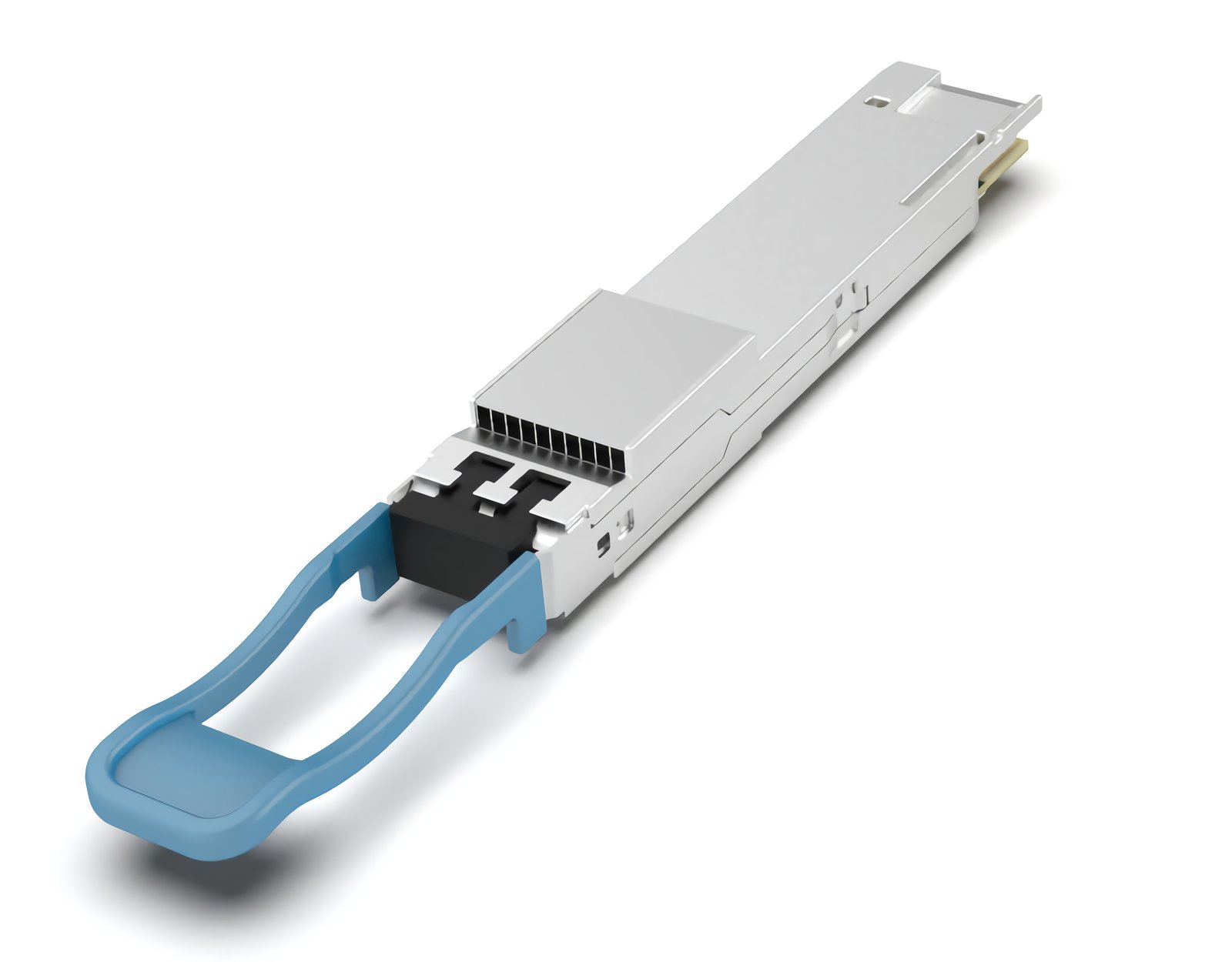

Cisco QDD-400G-LR4-S Compatible 400G QSFP-DD LR4 PAM4 CWDM4 lanes MUX/DEMUX design 10km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 10km with FEC DDM)
Product Details
|
Cisco Compatible |
QDD-400G-LR4-S |
Vendor Name |
SPEED LINKS |
|
Form Factor |
QSFP-DD |
Max Data Rate |
425Gbps |
|
Wavelength |
1271nm, 1291nm, 1311nm, 1331nm |
Max Distance |
10km |
|
Modulation Format |
PAM4 |
Host Required |
FEC |
|
Connector |
Duplex LC |
Voltage Supply |
3.3V |
|
Cable Type |
SMF |
DDM Support |
Yes |
|
Transmitter Type |
CWDM EML |
Receiver Type |
PIN |
|
TX Power |
-3.3~+3.5dBm |
Receiver Sensitivity |
< -7.7dBm |
|
Operation Temperature |
0 to 70°C (32 to 158°F) |
Maximum Power |
< 12.0W |
|
Protocols |
QSFP-DD MSA |
Application |
400G Ethernet |
