Arista Networks QDD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module

Customer Reviews
Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Keline

I'm Online Chat Now

Arista Networks QDD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module

Arista Networks QDD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module

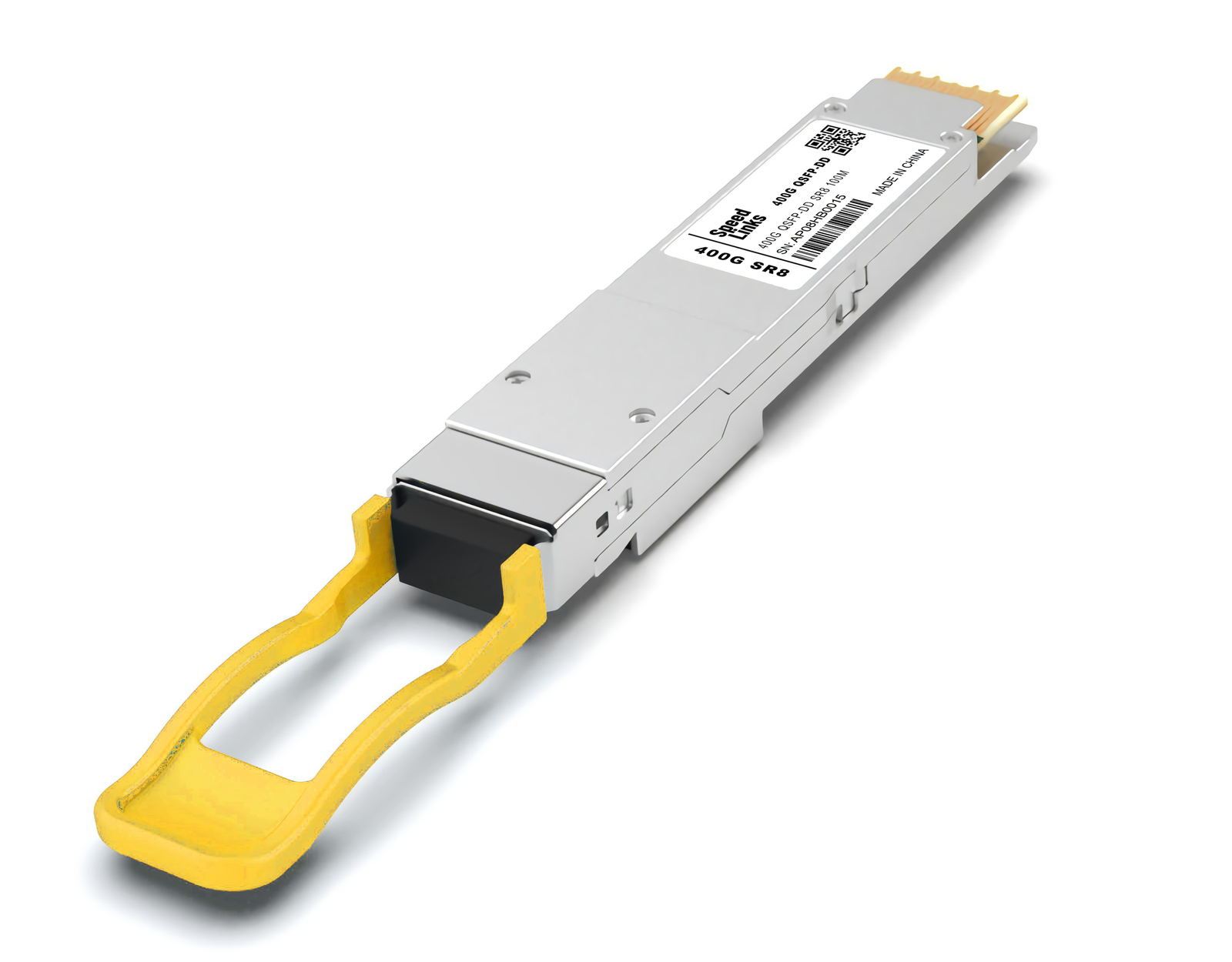

Large Image :  Arista Networks QDD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module

Product Details:

Place of Origin: Shenzhen
Certification: CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price:
Packaging Details: box
Delivery Time: 8-12days
Payment Terms: T/T
Supply Ability: 100piece/day
Detailed Product Description

Arista Networks QDD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 Optical Transceiver Module (850nm MTP/MPO OM3/OM4 100m with FEC DDM)

Product Details



Arista Compatible QDD-400G-SR8 Vendor Name SPEED LINKS
Form Factor QSFP-DD Max Data Rate 425Gbps
Wavelength 850nm Max Distance 70m on OM3/100m on OM4
Modulation Format PAM4 Host Required FEC
Connector MTP/MPO-16 Voltage Supply 3.3V
Cable Type MMF DDM Support  Yes
Transmitter Type  850nm VCSEL Receiver Type  PIN
TX Power -6.5~+4.0dBm Receiver Sensitivity < -7.9dBm
Operation Temperature  0 to 70°C (32 to 158°F) Maximum Power < 12W
Protocols QSFP-DD MSA, IEEE 802.3bs Application 400G Ethernet


Quality Assurance

Excellent quality is the foundation of SPEED LINKS' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.


Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Rigorous Industrial Product Testing


Optical communication products belong to industrial products,which require high stability and reliability.SPEED LINKS adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.
