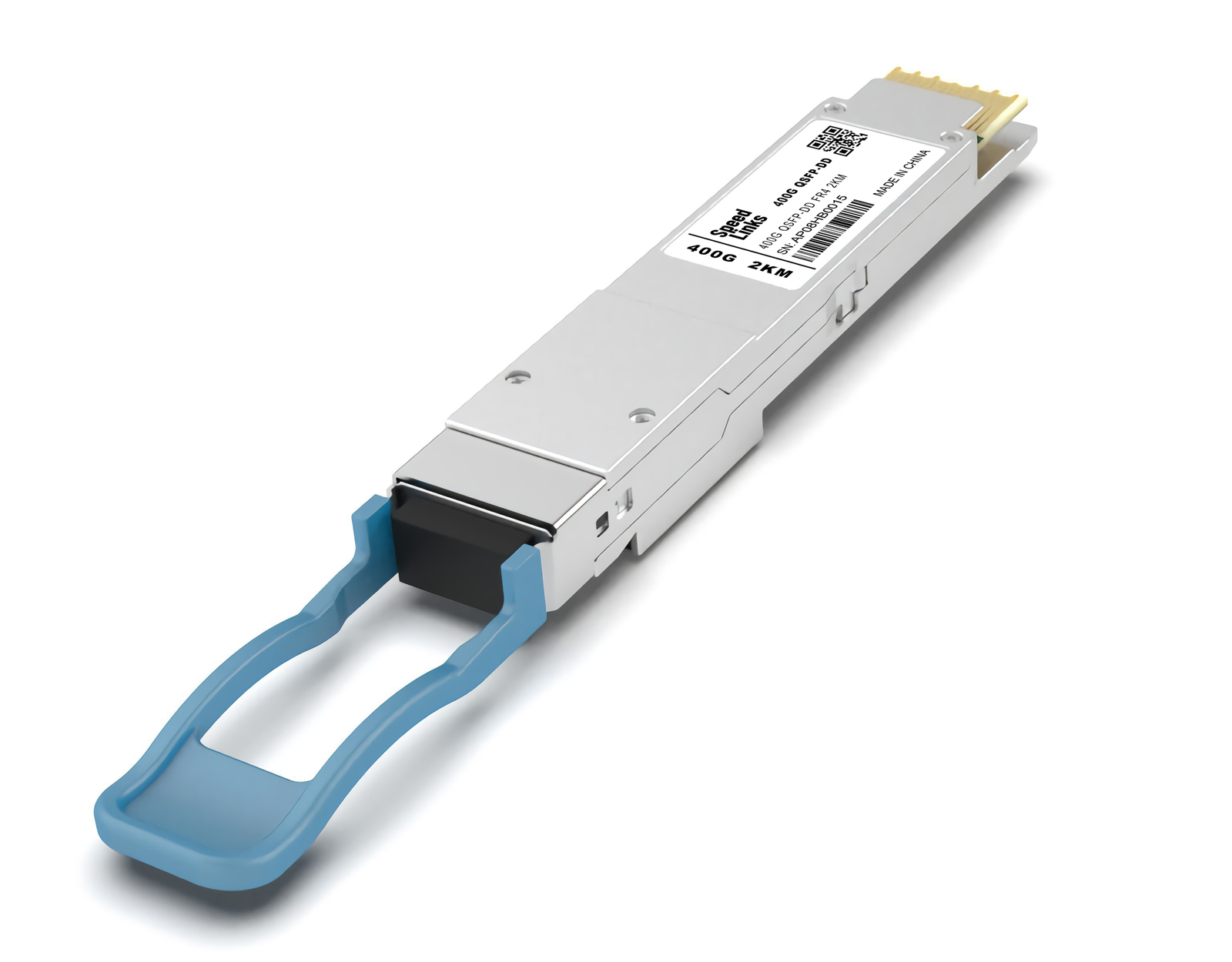

Cisco QDD-400G-FR4-S Compatible 400G QSFP-DD FR4 PAM4 CWDM4 lanes MUX/DEMUX design 2km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 2km with FEC DDM)
Product Details
|
Cisco Compatible |
QDD-400G-FR4-S |
Vendor Name |
SPEED LINKS |
|
Form Factor |
QSFP-DD |
Max Data Rate |
425Gbps |
|
Wavelength |
1271nm, 1291nm, 1311nm, 1331nm |
Max Distance |
2km |
|
Modulation Format |
PAM4 |
Host Required |
FEC |
|
Connector |
Duplex LC |
Voltage Supply |
3.3V |
|
Cable Type |
SMF |
DDM Support |
Yes |
|
Transmitter Type |
CWDM EML |
Receiver Type |
PIN |
|
TX Power |
-3.3~+3.5dBm |
Receiver Sensitivity |
< -7.7dBm |
|
Operation Temperature |
0 to 70°C (32 to 158°F) |
Maximum Power |
< 10.5W |
|
Protocols |
QSFP-DD MSA,
100G Lambda MSA 400G-FR4 |
Application |
400G Ethernet, Data Center Interconnect, Infiniband Interconnects |
Quality Assurance
Excellent quality is the foundation of SPEED LINKS' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Rigorous Industrial Product Testing
Optical communication products belong to industrial products,which require high stability and reliability.SPEED LINKS adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably.
