Product Details:
Payment & Shipping Terms:
|
| Fiber Type: | Bare Fiber / 900um Loose Tube | Return Loss: | >45dB |
|---|---|---|---|
| Channel Ripple: | <> | Directivity: | >50dB |
| High Light: | optical communication devices, fiber optic splitter | ||

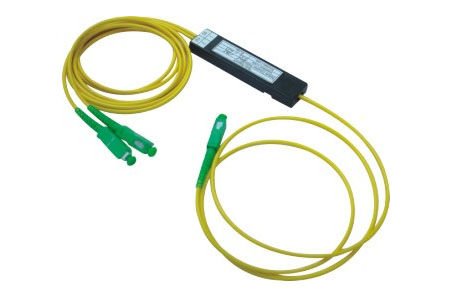

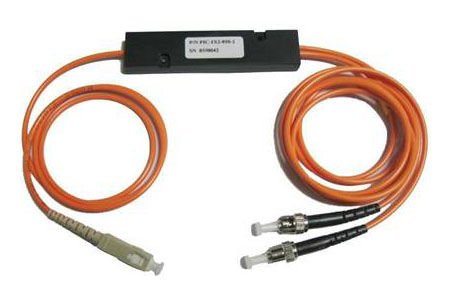

Multimode Fiber Optic Splitter used in LAN, PON, and Optic-fiber Sensors
The Multimode Fused Fiber Couplers are designed by cascade basic units to eliminate the module sensitivity. It can be widely used in LAN, PON, and Optic-fiber Sensors.
Specification:
|
Type |
Multimode Standard Fiber Couplers |
|
|
Coupling Ratio(% ) |
50/50 |
|
|
Grade |
P |
A |
|
Excess Loss(Typ.) |
0.8 |
1.0 |
|
Max. Insertion Loss(dB) |
3.9 |
4.1 |
|
Uniformity(Max)(dB) |
0.6 |
0.8 |
|
Directivity(dB) |
≥40 |
|
|
Operating Wavelength(nm) |
600~1600 |
|
|
Central Wavelength(nm) |
850, 1310 or 850/1310 |
|
|
Operating Temperature(ºC) |
-40~+85 |
|
|
Fiber Type |
Corning Multimode 50/125, 62.5/125 Fiber |
|
|
Fiber Pigtail Length(m) |
1 or Customer on Request |
|
|
Port Configuration |
1X2 or 2X2 |
|
|
Package Dimension(mm) |
A, B, C, D, M |
|
Tag:optical communication devices,fiber optic splitter,fiber optic equipments
