ISO RoHS Orange color Low insterion loss and high return loss 3m SC MM Fiber Optic Pigtail

Detailed Product Description

Length::	3m	Cable Color::	Orange
Cable Diameter::	900um	Tightness::	Easy Strip
High Light:	fiber optics cable connectors, fiber optic fc connector



Low insterion loss and high return loss SC MM Fiber Optic Pigtail

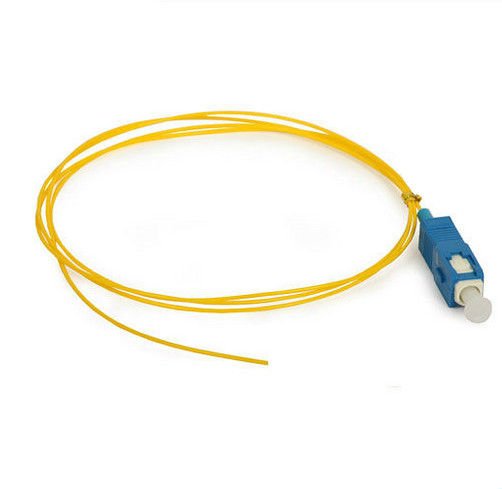

SC PC MM SX 0.9mm Fiber Optic Pigtail

Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): ≤ 0.2 (UPC) , ≤ 0.3 (APC)
Return Loss (dB): ≥ 50 (SM/UPC) , ≥ 60 (SM/APC), 35(MM/UPC)
Exchangeability: ≤ 0.2 dB
Tensile Strength: ≤ 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8°± 0.5°C (APC)



Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9



Application:





1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network




Tag:fiber optics cable connectors,fiber optic fc connector,optical fibre pigtail
