heat shrinkable tube 4, 6, 8, 12, 24, 48 SC SM color customized available Fiber Optic Pigtail

Detailed Product Description

Cable:	LSZH, PVC	Fiber Type:	G657A1, G652D
Length:	1.5m, 1M, 2M, Or Customized	Certification:	CE RoHS, ISO
Packing:	PE Bag
High Light:	optical fibre pigtail, fiber optics cable connectors



4, 6, 8, 12, 24, 48 SC SM White Fiber Optic Pigtail optional with heat shrinkable tube

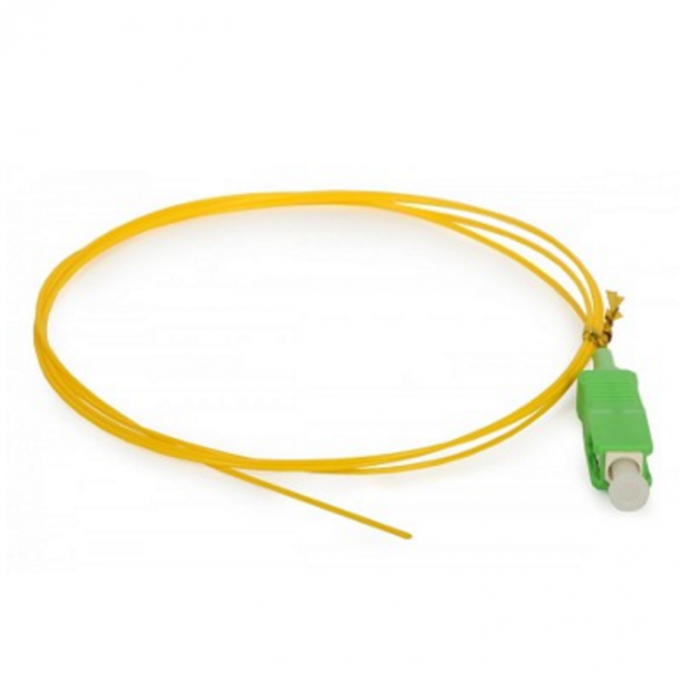

SC APC SM SX 0.9mm Fiber Optic Pigtails



Products Description



Parametor	Unit	Value
Connector Type		FC/UPC,FC/APC,SC/UPC,LC/UPC,LC/APC,ST/PC,MPO
Fiber Type		Multi-Mode	Single Mode
Insertion Loss	dB	Max.≤0.2	Max.≤0.3
Return Loss(Typ.)	dB	≥36(no APC connector)	/PC	/UPC	/APC
			≥45	≥50	≥60
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Connection Durability	times	≥1000
Operating/Storage Temperature	℃	-40~+80



Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): ≤ 0.2 (UPC) , ≤ 0.3 (APC)
Return Loss (dB): ≥ 50 (SM/UPC) , ≥ 60 (SM/APC), 35(MM/UPC)
Exchangeability: ≤ 0.2 dB
Tensile Strength: ≤ 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8°± 0.5°C (APC)





Application:





1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network
