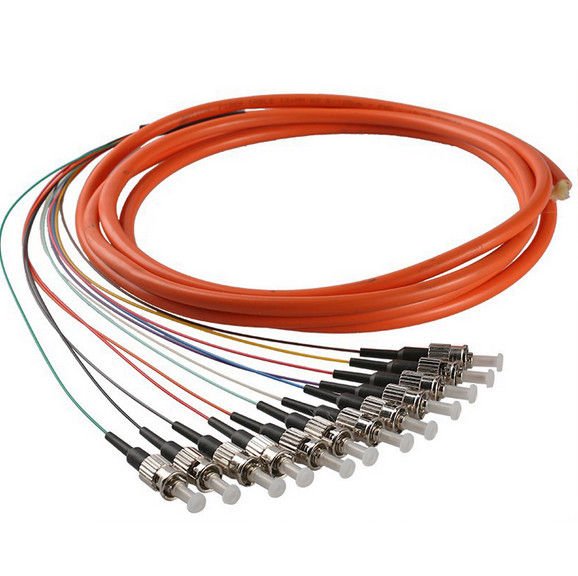

om2 50 125 Single Mode, Multi Mode FC PC MM SX 0.9mm Fiber Optic Pigtail for Premise Installations

Detailed Product Description

Fiber Type:	Om2 50 125	Cable Color::	Orange
Connector Type::	Lc 0.9mm	Cable Diameter::	900um
High Light:	optical fibre pigtail, fiber optics cable connectors



Single Mode, Multi Mode FC PC MM SX 0.9mm Fiber Optic Pigtail for Premise Installations



Features:
4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): ≤ 0.2 (UPC) , ≤ 0.3 (APC)
Return Loss (dB): ≥ 50 (SM/UPC) , ≥ 60 (SM/APC), 35(MM/UPC)
Exchangeability: ≤ 0.2 dB
Tensile Strength: ≤ 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8°± 0.5°C (APC)



fiber type	50/125 OM2
Test wavelength	1310/1550nm
Insertion Loss (Max)	-0.3dB
Return Loss (RL)	UPC>50dB
Durability	<0.1dB typical change,1000 repeatability



Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network
