Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pigtail | Type: | Singlemode Or Multimode |
|---|---|---|---|
| Ferrule End-face: | UPC,APC | Cable Diameter: | φ3.0,φ2.0,φ0.9 |
| Cable Length: | 1M, 3M, 5M, Customized | Core: | Simplex, Duplex |
| High Light: | optical fibre pigtail, fiber optics cable connectors | ||
Single Mode, Multi Mode SC PC MM SX 0.9mm Fiber Optic Pigtail
Features:

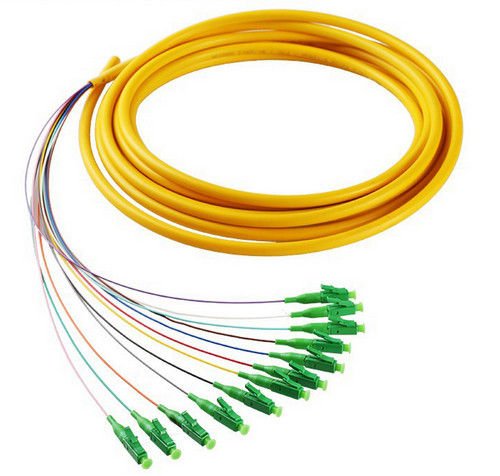

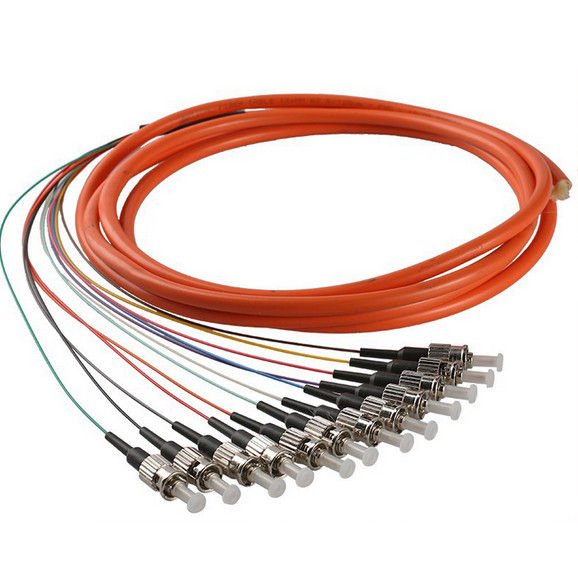

4, 6, 8, 12, 24, 48 fibers optional
With heat shrinkable tube

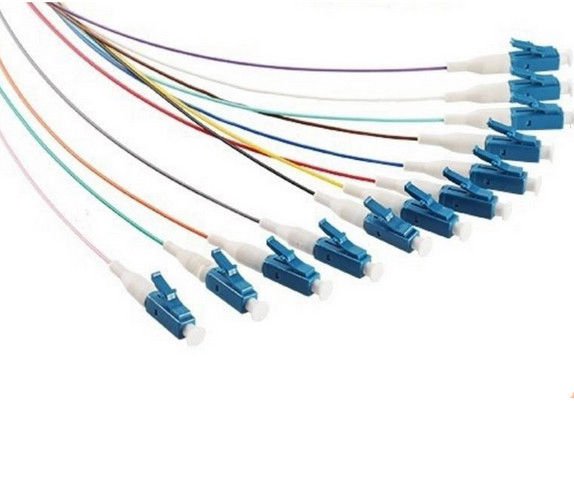

Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm
Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): ≤ 0.2 (UPC) , ≤ 0.3 (APC)
Return Loss (dB): ≥ 50 (SM/UPC) , ≥ 60 (SM/APC), 35(MM/UPC)
Exchangeability: ≤ 0.2 dB
Tensile Strength: ≤ 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: ≤50 um, ≤100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8°± 0.5°C (APC)
| Parameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
Application:
1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2,Video transmission , Data transmission3,Active Device Termination4,Premise Installations5,Telecommunication and Data processing Networks6, Industrial, medical & military7,Systems Integration for Long Haul, Metro and Access Network
