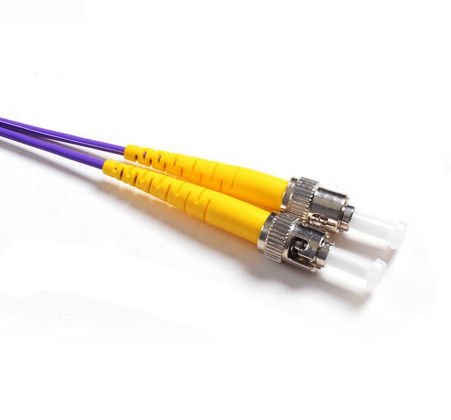

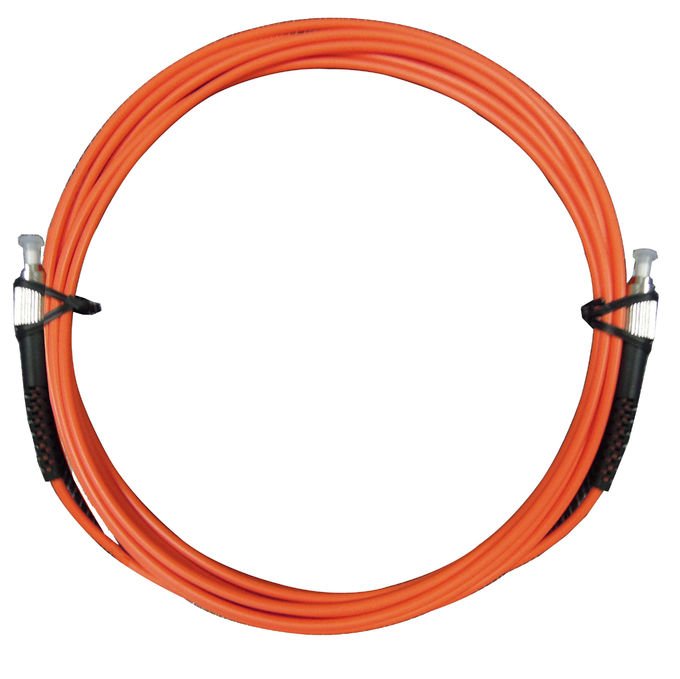

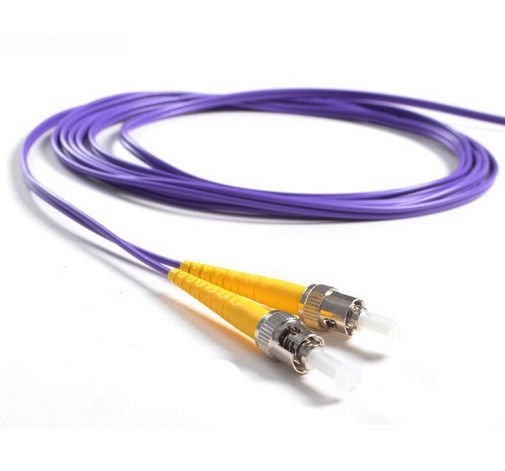

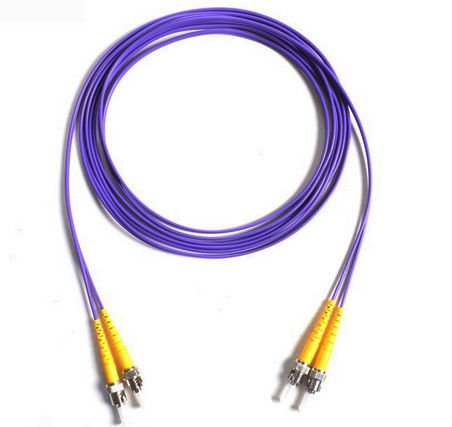

FC / PC - MM - OM3 - 0.9mm Fiber Optic Patch Cord for optical fiber CATV

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Ferrule End-face:	PC, UPC, APC
Core:	Simplex, Duplex	Cable Diameter:	Ф3.0mm, Ф2.0mm, Ф0.9mm
Cable Length:	1, 2, 3 Meter Or Customized	Cable Type:	PVC, LSZH, OM3, OFNR, OFNP
High Light:	sc fiber patch cord, st patch cord



FC / PC - MM - OM3 - 0.9mm Fiber Optic Patch Cord for optical fiber CATV

FC fiber optic patch cords are with FC fiber optic connectors, which is a screw type connection. FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.

Features:
Low insertion loss, high return loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability



Application:

1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2.Video transmission , Data transmission3.Active Device Termination4.Premise Installations5.Telecommunication and Data processing Networks6.Industrial, medical & military7.Systems Integration for Long Haul, Metro and Access Network

Ordering Information:
FC/PC–FC/ PC-MM- SX-Φ0.9–1M
①  ②      ①    ②    ③   ④   ⑤     ⑥
① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: “DX” means Duplex / “SX” means Simplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH, OM3, OFNR, OFNP





Parameters	Test Condition	Value (dB)
		Multimode	Singlemode
Insertion Loss	0.85/1.3um or 1.31/1.55um	≤0.3	≤0.3
Return Loss	0.85/1.3um or 1.31/1.55um	≥35	≥50 (APC≥60)
Interchangeability	Connect Randomly	＜0.2	＜0.2
Vibration	5~50Hz, 1.5mm Amplitude	＜0.1	＜0.1
Tensile Strength	0~15Kgf (0.9mm Exception)	＜0.1	＜0.1
High Temperature	+85℃, During 100 Hours	＜0.2	＜0.2
Low Temperature	-40℃, During 100 Hours	＜0.2	＜0.2
Temperature Cycle	-40℃～+85℃, during 5 Cycles	＜0.2	＜0.2
Humidity	+25℃～+65℃, 93%R.H, 100 hours	＜0.2	＜0.2
