Simplex 2.0mm LSZH Fiber Optic Patch Cord SC / APC Connector to SC / APC SM

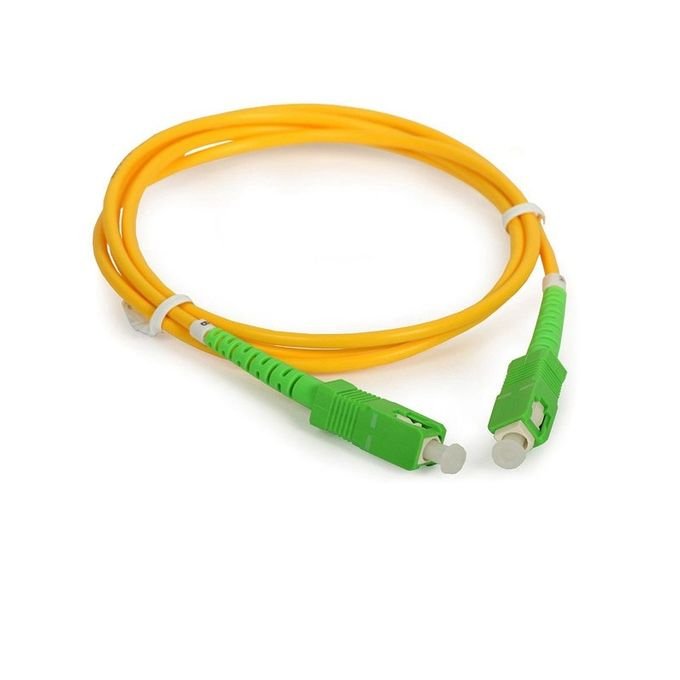

Large Image : Simplex 2.0mm LSZH Fiber Optic Patch Cord SC / APC Connector to SC / APC SM

Product Details:

Place of Origin:	Shenzhen , China
Certification:	CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:
Packaging Details:	PE bag
Delivery Time:	3-15 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	1 million connector / month

Contact Now

Detailed Product Description

Cable Material:	LSZH / PVC / OFNP	Connector:	SC/UPC-SC/APC
Fiber Type:	G652D / G657A / G657B	Fiber Qty:	Simplex
Cable Color:	Yellow / White /Blue /Customized	Cable Length:	1M / 2M / 3M / Customized
High Light:	fiber patch cord, st patch cord

Simplex 2.0mm LSZH Fiber Optic Patch Cord SC / APC Connector to SC / APC SM

Features
* Type MTRJ SC,LC,FC ,ST Fiber Optic Patchcord and Pigtail

* Single mode and Multimode PC or 8 degree APC 9 degree APC

* Cable 0.9mm, 2.0mm, 2.4mm or 3.0mm with simplex or duplex and 4,6,8,12,24,48 Core

* Customized length

* Cable color green, yellow, orange or Customized Designs

* Cable PVC,Hytrel,LSZH,OFNP,OFNR

* All parts compliant with ROHS

* IEC standard compatible

* All parts compliant with ROHS

* GR-326-CORE Compliant

Application
♦ Fiber optic communcation system;
♦ Fiber optic data transmission;
♦ LAN , CATV ;
♦ Fiber optic testing system.

Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN

Specification:

MODEL NO	Fiber Optic Patch Cord
Fiber Type	Single Mode G652D (G657A Negotiable)
Cable Assembilies	Simplex
Jacket Material	PVC(LSZH Negotiable)
Cable Diameter (mm)	2.0mm
Connector Type	SC
End Face	APC
Working Wavelength (nm)	1310/1550
Insertion Loss (dB)	≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)	UPC ≥55dB APC ≥60dB
Exchangeability	≤0.2dB
Operating Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85
