Product Details:
Payment & Shipping Terms:
|
| Cable Material: | LSZH / PVC / OFNP | Connector: | SC/UPC-SC/APC |
|---|---|---|---|
| Fiber Type: | G652D / G657A / G657B | Fiber Qty: | Simplex |
| Cable Color: | Yellow / White /Blue /Customized | Cable Length: | 1M / 2M / 3M / Customized |
| High Light: | fiber patch cord, st patch cord | ||

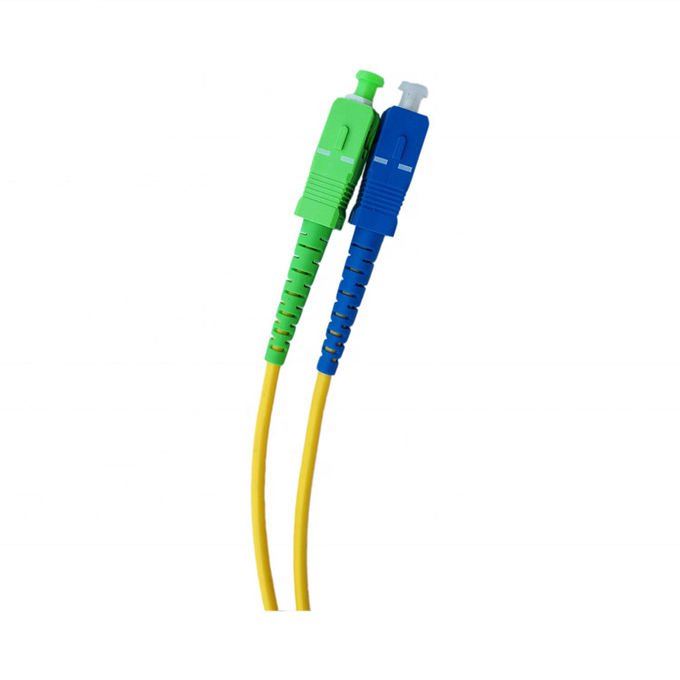

SX SM Fiber Optic Patch Cord , Telecom Grade SC / APC to SC / UPC LSZH Cable
Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.
Application
Specification:
| Characteristic | SM , MM | |||
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB | |
| Interchangeability | ≤0.2dB | |||
| Repeatability | ≤0.2dB | |||
| Operation temperature | -40~+80 | |||
Ordering Information
For Example: FC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN
Tag:sc fiber patch cord,fiber patch cord,st patch cord
