| Mode Type:: | Singlemode, Multimode | Fiber Diameter: | 0.9mm, 2.0mm, 3.0mm |
|---|---|---|---|
| Connector:: | SC, LC, FC, ST,MTRJ, MPO, Etc | Insertion Loss:: | ≤0.2dB |
| High Light: | sc fiber patch cord, st patch cord | ||

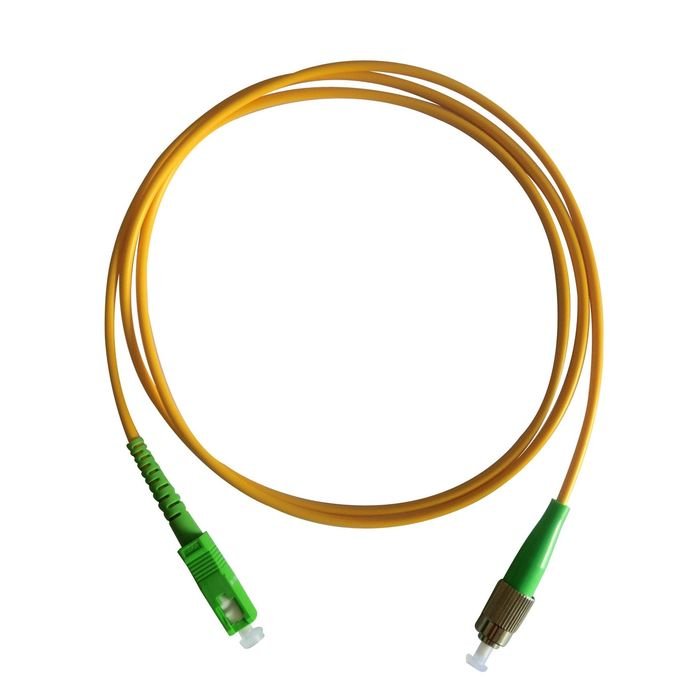

SC / APC Connector Fiber Optic Patch Cable , Duplex Web-scale PVC Cable
Features
♦ In line with Telcordia GR-326-CORE standard
♦ Low insertion loss,high return loss,high reliability
♦ Good repeatability,interchangeability
♦ Any diameter of fiber can be chose ,0.9mm,2mm,3mm ,
10G fiber,Low Smoke and Zero Halogen can be chose.
Application
♦ Fiber optic communcation system;
♦ Fiber optic data transmission;
♦ LAN , CATV ;
♦ Fiber optic testing system.
Ordering Information
For Example: SC/PC-FC/PC-SM-SX-φ3.0-3M
Connector Type:FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule End-face:PC,UPC,APC
Core Type: Single-mode(SM:9/125μm), Multimode(MM:50/125μm or 62.5/125μm)
Product Structure:“DX”means Duplex,“SX”means Simplex
Fiber Diameter: φ3.0mm,φ2.0mm,φ0.9mm
Cable Length:1,2,3meter or customized.
Cable Type:PVC,LSZH,OM3,OFN
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC,UPC,APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
