| Product Name: | Fiber Optic Patch Cord | Type: | Singlemode Or Multimode |
|---|---|---|---|
| Ferrule End-face: | UPC,APC | Cable Diameter: | φ3.0,φ2.0,φ0.9 |
| Cable Length: | 1M, 3M, 5M, Customized | Core: | Simplex, Duplex |
| High Light: | fiber patch cord, st patch cord | ||

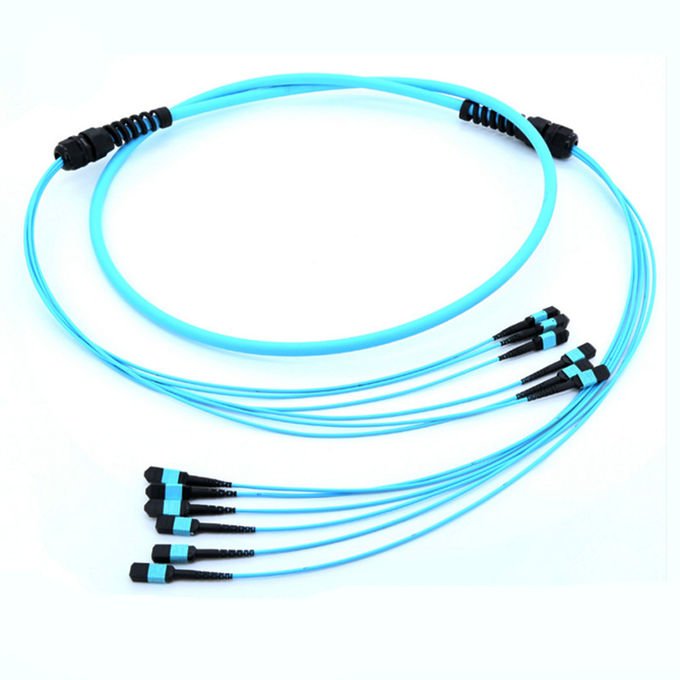

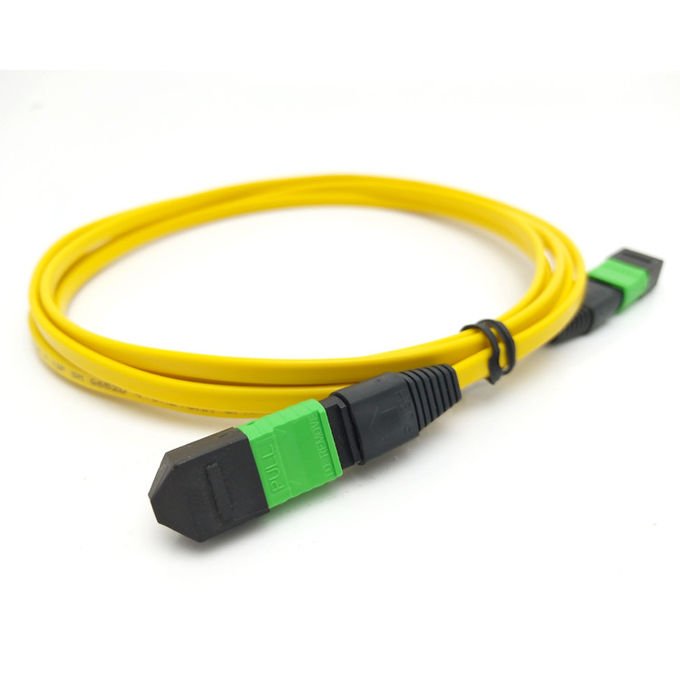

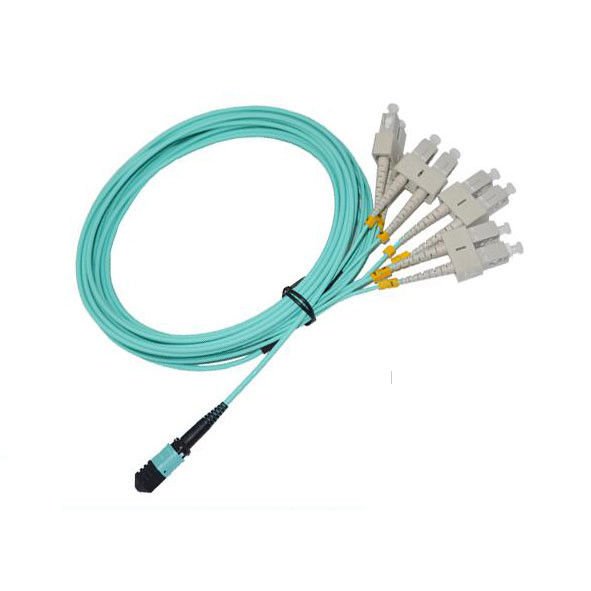

Good Exchangeability Durability, high fiber density MPO Fiber Optic Patch Cord
MPO fiber optic patch cords are with MPO fiber optic connectors. They are several fiberglass connections in one such patch cord, for example, 4 fiber, 8 fiber, 12 fiber, etc. Single mode and multimode; PC, APC polishing, Male and Female types are available.
Features:
High fiber density (24 fibers for Multimode)
Low insertion loss and reflection loss
Good Durability
Good Exchangeability
High temperature stability
Application:
Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Specification:
|
Parameter |
Unit |
MPO-MM-PC |
|
Insertion loss(typical) |
dB |
≤0.3 |
|
Return loss |
dB |
≥35 |
|
Exchangeability |
dB |
≤0.3 |
|
Vibration |
dB |
≤0.3 |
|
Operating temperature |
℃ |
-40~75 |
|
Storage temperature |
℃ |
-45~85 |
Ordering Information:
MPO/PC-MPO/PC-MM-12cores-2M
① ② ① ② ③ ④ ⑤
①Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
②Ferrule End-face: PC, UPC, APC
③Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④Fiber core: 4 core, 8 core, 12 core, 24 core
⑤Cable Length: 1, 2, 3 meter or customized
⑥Cable type: PVC, LSZH, OM3, OFNR, OFNP
