Product Details:
Payment & Shipping Terms:
|
| Cable Color: | Pink | Out Jacket: | LSZH |
|---|---|---|---|
| Insertion Loss: | 0.2dB | Length: | 3 Mtrs |
| High Light: | fiber patch cord, sc fiber patch cord | ||

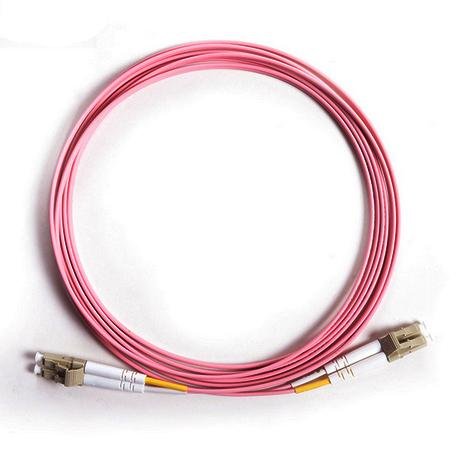

OM4 pink Duplex 3Mtrs OFNP Fiber Optic Patch Cord insertion loss <=0.2dB
►Features:►Specification:
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Tag:sc fiber patch cord,fiber patch cord,st patch cord
