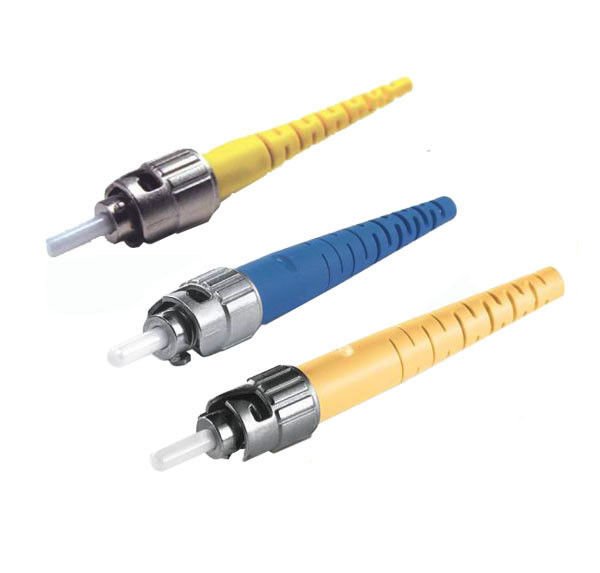

ST/PC-ST/PC-SM-DX-3.0mm-5Mtrs-LSZH Fiber Optical Patch Cord Insertion Loss <=0.2dB

Large Image : ST/PC-ST/PC-SM-DX-3.0mm-5Mtrs-LSZH Fiber Optical Patch Cord Insertion Loss <=0.2dB

Product Details:

Place of Origin:	Shenzhen , China
Certification:	ISO9001:2015 , RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:
Packaging Details:	PE bag
Delivery Time:	3-15 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	1 million connector / month

Contact Now

Detailed Product Description

Cable Color:	Yellow	Out Jacket:	LSZH
Diameter:	3.0mm	Connector Color:	Yellow
IL:	<>
High Light:	sc fiber patch cord, st patch cord

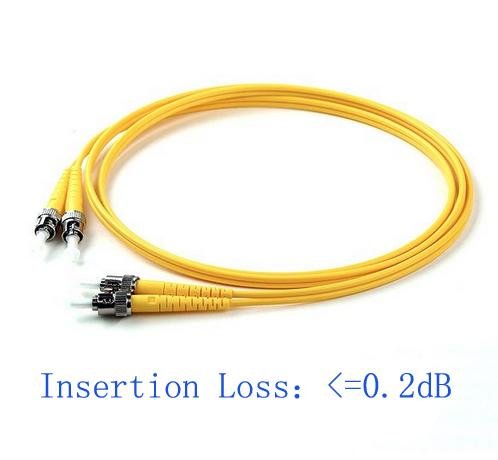

ST/PC-ST/PC-SM-DX-3.0mm-5Mtrs-LSZH fiber optic patch cord,insertion loss:<=0.2dB

Application:

CATV, metro test equipment; FTTH;
Telecommunication networks;
Local area networks (LAN);
Wide area networks (WAN);
Premise installations;
Data processing networks;
Video and military active device termination.
Optical Distribution Frame
Optical Network Equipments

Specifications :

Parameter	Unit	FC, SC, LC/ Armoured fiber patch cord	ST, MU	MT-RJ, MPO	E2000
SM	MM	SM	MM	SM	MM	SM
PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC	PC	APC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥75
Operating wavelength	nm	1310, 1510	1310, 1510	1310, 1510	1310, 1510
Exchangeability	dB	≤0.2	≤0.2	≤0.2	≤0.2
Vibration	dB	≤0.2	≤0.2	≤0.2	≤0.2
Operating temperature	°C	-40~75	-40~75	-40~75	-40~75
Storage temperature	°C	-45~85	-45~85	-45~85	-45~85
Cable diameter	mm	Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9	Φ3.0, Φ2.0, Φ0.9	φ3.0, φ2.0, φ0.9

Parameter

Unit

FC, SC, LC/ Armoured fiber patch cord

ST, MU

MT-RJ, MPO

E2000

UPC

APC

UPC

APC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310, 1510

Exchangeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable diameter

Φ3.0, Φ2.0, Φ0.9

φ3.0, φ2.0, φ0.9

Order information:

♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR
