Product Details:
Payment & Shipping Terms:
|
| Out Jacket: | PVC | Diameter: | 2.0mm |
|---|---|---|---|
| Length: | 3M | Insertion Loss: | 0.3dB |
| High Light: | fiber patch cord, sc fiber patch cord | ||

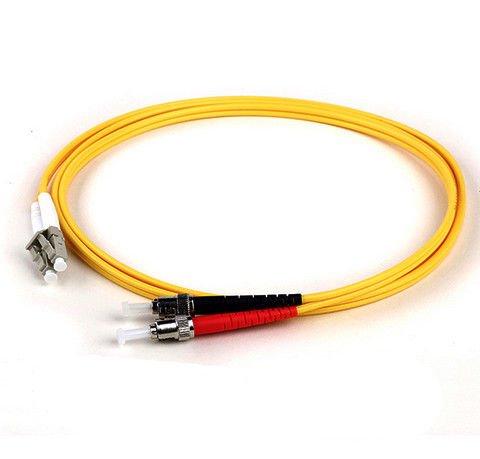

Manufacturing ST/UPC to LC/UPC SM duplex fiber optic jumper,2.0mm,3Mtrs,PVC out jacket
►Material of patch cord:
--Dust caps: LDPE, transparent (RoHS)
--Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
--Inner frame: PBT, white (RoHS)
--Ferrule: Zirconium oxide ceramic material, white (RoHS)
--Ferrule’s handle: copper (C3602), nickelage (RoHS)
--Mechanical spring: stainless steel (RoHS)
--Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
--Snap ring: aluminium alloy 6063 (RoHS)
--Ring: copper alloy (HPD62), nickelage (RoHS)
--Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
--Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNR and more
Application:
Order information:
♦Type: SX/DX optional
♦Ferrule end face: APC/UPC/PC
♦Diameter: 0.9, 2.0, 3.0mm
♦Length:1m, 2m, 3m to 120m
♦Fiber: SM/OM1/OM2/OM3/OM4
♦Material of jacket: PVC/LSZH/OFNR
Specifications :
| Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
Tag:sc fiber patch cord,fiber patch cord,st patch cord
