Fiber Optic Patch Cord FC-E2000 Single Mode / PC , UPC And APC

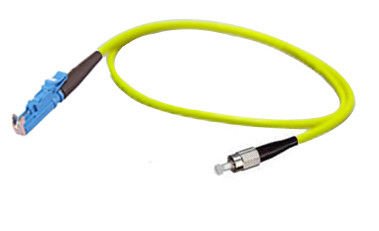

Large Image : Fiber Optic Patch Cord FC-E2000 Single Mode / PC , UPC And APC

Product Details:

Place of Origin:	Shenzhen , China
Certification:	CE,RoHS,FCC,CPR,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:
Packaging Details:	PE bag
Delivery Time:	3-15 days
Payment Terms:	L/C,T/T,Western Union payments for offline orders.
Supply Ability:	1 million connector / month

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Patch Cord	Type:	Singlemode Or Multimode
Ferrule End-face:	UPC,APC	Cable Diameter:	3.0mm, 2.0mm, 0.9mm, 0.25mm
Cable Length:	1M, 3M, 5M, Customized	Core:	Simplex, Duplex
High Light:	fiber patch cord, st patch cord

Fiber Optic Patch Cord FC-E2000 Single Mode /PC, UPC And APC

Specifications:

    1.Low insertion loss, < 0.2db
    2.Telecom Level, Polishing A level
    3.High credibility and stability
    4.Good mechanical endurance

Description:

These seriesfiber optic patchcord are used for linking the equipment and components in the fiber optic network ,they are with various kinds of fiber optic connector types.

Application:

Testing equipment
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication

Specification:

Item	Unit	FC,SC,LC	ST,MU	MT-RJ, MPO	E2000
SM	MM	SM	MM	SM	MM	SM
PC	UPC	APC	PC	UPC	PC	PC	PC	UPC	PC	PC	UPC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35	≥55	≥75
Operating wavelength	nm	1310,1510	1310,1510	1310,1510	1310,1510
Exchengeability	dB	≤0.2	≤0.2	≤0.2	≤0.2
Vibration	dB	≤0.2	≤0.2	≤0.2	≤0.2
Operating temperature	°C	-40~75	-40~75	-40~75	-40~75
Storage temperature	°C	-45~85	-45~85	-45~85	-45~85
Cable Diameter	mm	φ3.0,φ2.0,φ0.9	φ3.0,φ2.0,φ0.9	φ3.0,φ2.0,φ0.9	φ3.0,φ2.0,φ0.9

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

UPC

APC

UPC

Insertion loss(typical)

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

Return loss

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

1310,1510

Exchengeability

≤0.2

Vibration

≤0.2

Operating temperature

°C

-40~75

Storage temperature

°C

-45~85

Cable Diameter

φ3.0,φ2.0,φ0.9

Availabilities:
-Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
-Simplex and Duplex assemblies available
-Singlemode and multimode available
-PC, UPC and APC polishing available
-Hybrid patch cords are available upon request
-Fan-out available (Ribbon type / bundle type)
-Pigtail available
-Loopback available
-Customized lengths upon request
-100% tested before shipping
