Product Details:
Payment & Shipping Terms:
|
| Features: | High Credibility And Stability | Product Name: | Fiber Optic Patch Cord |
|---|---|---|---|
| Type: | Singlemode Or Multimode | Application: | FTTH , CATV, LAN, MAN, WAN, Test &Measuremen |
| Cable Length: | 1M, 3M, 5M, Customized | Ferrule End-face: | UPC,APC |
| High Light: | sc fiber patch cord, st patch cord | ||

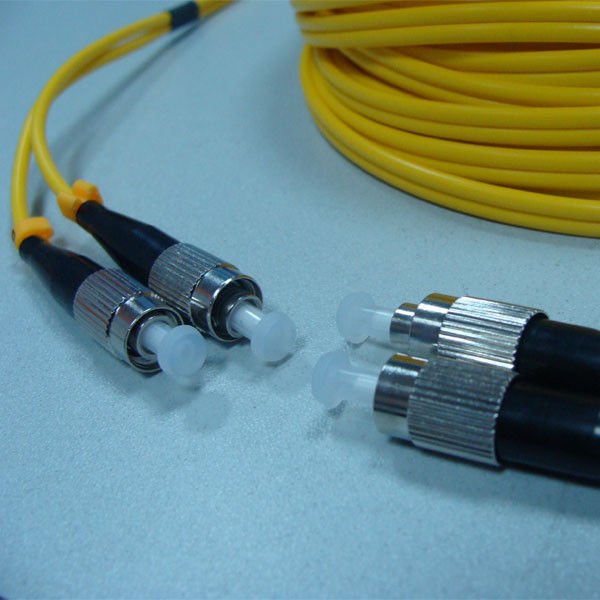

FC-FC Fiber Optic Patch Cord Single Mode Duplex
FC fiber optic patch cords are with FC fiber optic connectors, which is a screw type connection. FC stands for Fixed Connection. It is fixed by way of threaded barrel housing. FC connectors are generally constructed with a metal housing and are nickel-plated.
Features:
Application:
1.FTTH , CATV, LAN, MAN, WAN, Test &Measuremen 2.Video transmission , Data transmission 3.Active Device Termination 4.Premise Installations 5.Telecommunication and Data processing Networks 6.Industrial, medical & military 7.Systems Integration for Long Haul, Metro and Access Network
Specification:
|
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss(typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Operating wavelength |
nm |
1310, 1510 |
1310, 1510 |
1310, 1510 |
1310, 1510 |
||||||||
|
Exchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Operating temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
Storage temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
|
Cable diameter |
mm |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
φ3.0, φ2.0, φ0.9 |
||||||||
