LC SM SX 2.0mm cable diameter Fiber Optic Patch Cord ≥50dB RL, ≤0.2dB IL

Detailed Product Description

High Light:	sc fiber patch cord, st patch cord

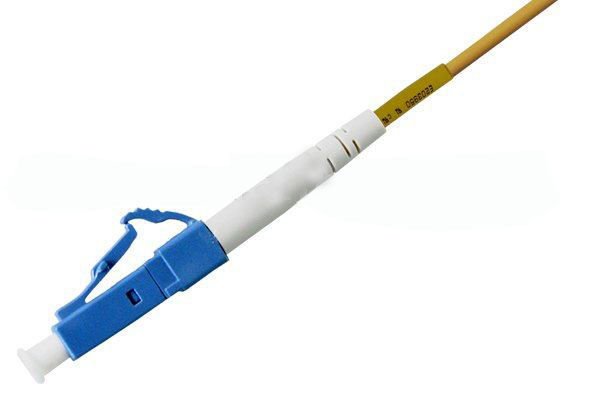

LC SM SX 2.0mm cable diameter Fiber Optic Patch Cord ≥50dB RL, ≤0.2dB IL

LC stands for Lucent Connector. It is a small form-factor fiber optic connector, half the size of the ST.

Features:

High return loss
Low insterion loss
Telcordia style boots
Compiance with TIA/IEA, IEC, Rohs



Application:

1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen2,Video transmission , Data transmission3,Active Device Termination4,Premise Installations5,Telecommunication and Data processing Networks6, Industrial, medical & military7,Systems Integration for Long Haul, Metro and Access Network

Specification	PC(Standard)	PC(Standard)
IL (Insertion Loss)	≤0.3dB	≤0.2dB
RL (Return Loss)	≥50dB	≥55dB
Operating Temperature	-40℃ to 75℃
Durability	≤0.1dBtypical change, 500matings
Available Wavelength	SM=1310&1550nm



Ordering Information:

1. Connector type: FC, SC,   LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single mode(SM: 9/125um), Multimode(MM: 50/125um or 62.5/125um)
4. Core quantity: Simplex(SX), Duplex(DX)
5. Cable diameter: 0.9mm, 2.0mm, 3.0mm
6. Cable Length: 1M, 2M, 3M....
7. Cable type: PVC, LSZH, OM3, OFNR, OFNP, Armoured...
8. Color: Yellow, Orange, Green, Red, Blue.....
