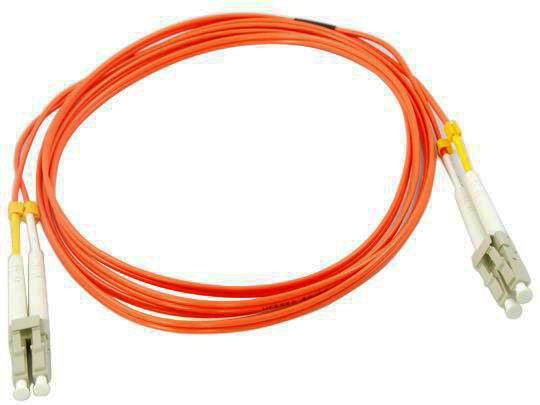

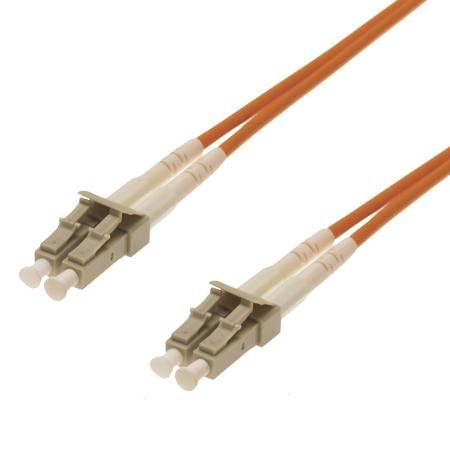

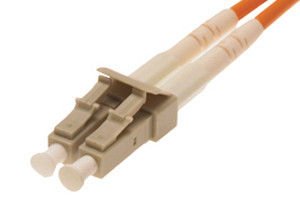

LC-LC-MM-DX Fiber optic patch cord

Detailed Product Description

High Light:	fiber patch cord, sc fiber patch cord

Small form-factor LC-LC-MM-DX Fiber optic patch cord for industrial,medical and military,



Quick Details

 Place of Origin:Guangdong, China (Mainland)

 Connector:SC,LC,FC,ST,E2000,MTRJ,MU,MPO,DIN

 Type:Singlemode or Multimode

 Ferrule end-face:UPC,APC

 Cable diameter:3.0mm, 2.0mm, 0.9mm, 0.25mm

 Cable length:1M, 3M, 5M, customized

 Cable Jacket:PVC, LSZH

 Core:Simplex, Duplex



Description:

High quality polished 100% test ,high precision of ceramic ferrile,LC-LC-MM-DX fiber optic patch cord ,whose length is optional.

Application:

Usage:Testing equipment,FTTX+LAN,Optical fiber CATV,Optical communication system,

Telecommunication



 Specification:



Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9



Availabilities:

-Full specifications, FC, SC, ST, LC, MTRJ, E2000, DIN, D4, SMA, etc.
-Simplex and Duplex assemblies available
-Singlemode and multimode available
-PC, UPC and APC polishing available
-Hybrid patch cords are available upon request
-Fan-out available (Ribbon type / bundle type)
-Pigtail available
-Loopback available
-Customized lengths upon request
-100% tested before shipping



Competitive Advantage:

Factory Guarantee:

1. As we are factory, we can guarantee our price is first-hand, very cheap and competitive.

2.To develop advanced technology ,we have built a stable relationship with scientific research center for fiber optical

component home and abroad. with a capacity of 200,000 pieces per month .Our products enjoy great reputation for

 their advanced and precise quality worldwide.

Quality Advantage:

1.We set up a strict quality guarantee system according to the requirments of international management standard

 ISO9001:2008.

2.We have not received complaints from customers on product quality right now.

service advantage:

1.To cater for different requirement from our customers, we offer various OEM service.

2.We constantly seek enabling technologies and solutions to help our customers cope with ever changing environment

and requirements.











Tag:sc fiber patch cord,fiber patch cord,st patch cord
