| Fiber Type: | Bare Fiber / 900um Loose Tube | Return Loss: | >45dB |
|---|---|---|---|
| Channel Ripple: | <> | Directivity: | >50dB |
| High Light: | fiber optic splitter, fiber optic equipments | ||

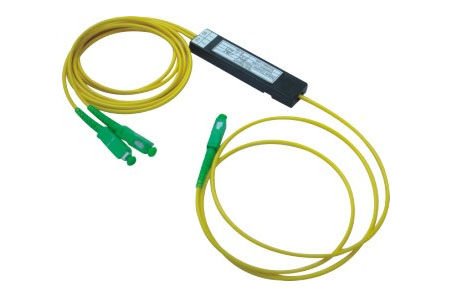

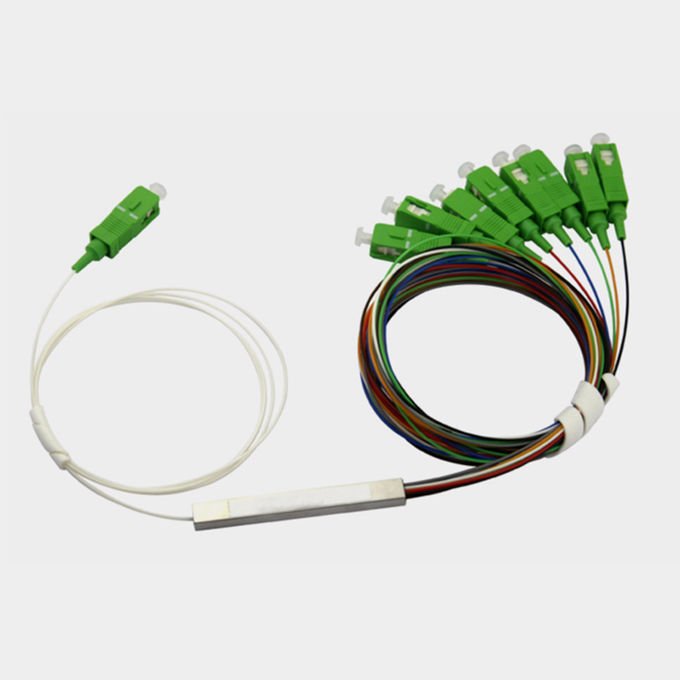

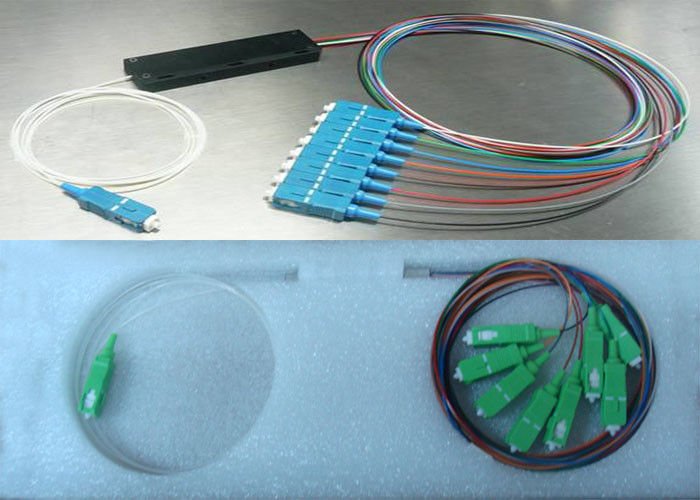

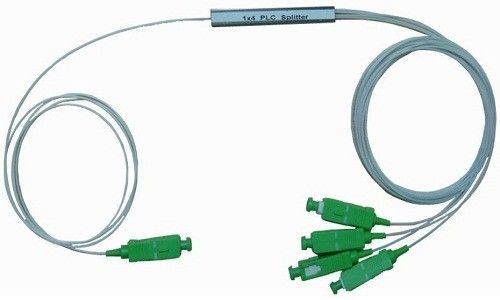

1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System
Optical Splitter/Coupler is an optical device that combines or splits power from optical fibers.
It divides light from a single fiber into two or more fiber channels.
Features:
Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available
1x2, 1x4 and 1x n customized couplers configuration available

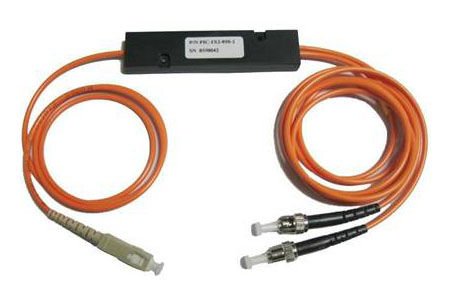

| Type | Multimode Standard Fiber Couplers | |
| Coupling Ratio(% ) | 50/50 | |
| Grade | P | A |
| Excess Loss(Typ.) | 0.8 | 1.0 |
| Max. Insertion Loss(dB) | 3.9 | 4.1 |
| Uniformity(Max)(dB) | 0.6 | 0.8 |
| Directivity(dB) | ≥40 | |
| Operating Wavelength(nm) | 600~1600 | |
| Central Wavelength(nm) | 850, 1310 or 850/1310 | |
| Operating Temperature(ºC) | -40~+85 | |
| Fiber Type | Corning Multimode 50/125, 62.5/125 Fiber | |
| Fiber Pigtail Length(m) | 1 or Customer on Request | |
| Port Configuration | 1X2 or 2X2 | |
| Package Dimension(mm) | A, B, C, D, M | |
Applications:
Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting
